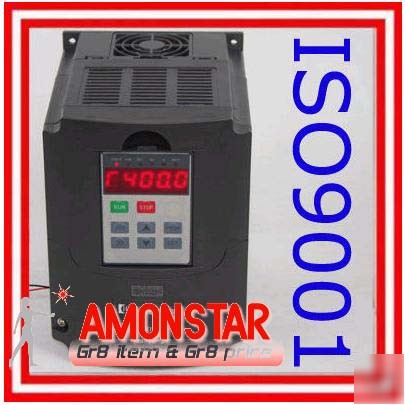

New variable frequency drive inverter vfd 2HP 1.5KW 7A
Brand new ,Of couse Amonstar only provide brand new items with unbeatable price and service.
Variable Frequency Drive Inverter VFD NEW
(we also stock 2HP 1.5KW 7A ,3HP 2.2KW 10A,4HP 3KW 13A
we also stock 110V item, please contact us for stock )
1) Inpute Voltage: 220 15% (We also stock 380 15%, please contact us for item stock)
2) Output Voltage : 208-240VAC (analogous to Input Voltage)
4) Outpute Frequency: 0-400 Hz
5) Inpute Phase: 1 or 3 phase as you like
7) Item Manufactuer: From a well-known manufacture who manufacture VFD for more than 12 years.
220V class 220 15%(we also stock 380V item, please contact us for stock)
5-Digits Display & Status Indicator Lamp
Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
0-95% Relative Humidity without dew
Digital: 0.1% -10~40 ; Analog: 0.1% 25 10
Digital: 0.1Hz; Analog: 1 of max. Operating frequency
External Voltage 0-5V 0-10V 4-20mA 0-20mA.
Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set.
Selectable 4-speed steps ramp-up and -down time (0.1-6500s).
Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz.
6 multi-function input terminals for 8 speed steps control, program operation, switching of 4-speed Ramp, UP/DOWN function, counter, external emergency stop and other functions.
5 multi-output for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings.
Auto Voltage Regulation AVR , Decelerating Stop or Coasting Stop, DC Braking, Auto Reset and Restart, Frequency Track, PLC Program Control, Traverse Control, Drawing Control Auto Energy Saving, Carrier Adjustable (Up to 20KHz), etc.
Electronic relay protection motor drive
Drive for constant torque150%/1 min. for the kinds of fan 120%/1min.
When the fuse breaks , the motor will stop.
We also stock 380V item, contact us about stock
Restart with Frequency Track afterInstant Stop
Stall protection in ramp operation
Fin over-heat protection, restriction of reverse running, direct start after power on, fault reset, parameter lock PID, one-drive-more, etc.
Input terminal of AC line power. 220V class, for both single/three phase, single phase connected to any two phases
Output terminal of the inverter
Connector for braking resistor.
Ground terminal: the third method of grounding for 220V and special grounding for 380 V of Electrical Engineering Regulations.
If you have any other enquiries, please email us and with our confirmation.
* we often receive enquiries regarding replacement parts or widgets but sorry we can only provide the parts to those who bought from us.
1. 2-Years Warranty from the date of package receipt.
