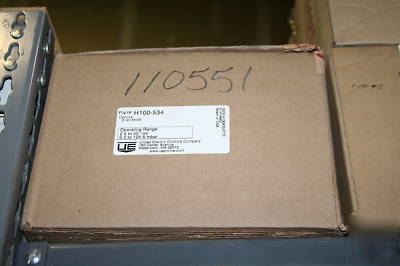

New ue 100 series pressure switch - H100-534
UNITED ELECTRIC 100 SERIES PRESSURE SWITCH
Rugged, NEMA 4X, epoxy coated enclosure
Internal reference scale and adjustable deadband available
Option 0140 - Gold contacts, 1A 125 VAC resistive
Option M406 - Intrinsic Safety compliance for Russia per Gosgortechnadzor standards
Welded 316L Stainless Steel diaphragm
1/2" NPT (female) pressure connection
large 0.72" orifice for clean-out purposes
Adjustable Set Point Range: 2.5 to 50 "wc (6.2 to 124.5 mbar)
Deadband: 0.1 to 0.8" wc (0.2 to 2.0 mbar)
Over-Range Pressure: 50 psi (3.4 bar)
Proof Pressure: 100 psi (6.9 bar)
Storage Temperature: -65 to 160 deg. F
Ambient Temperature: -40 to 160 deg. F
Electrical Connection: 1/2" NPT (female); Two 7/8" diameter knockouts
Pressure Connection: 1/2" NPT (female)
