La-5034 probes digital logic analyzer oscilloscopes

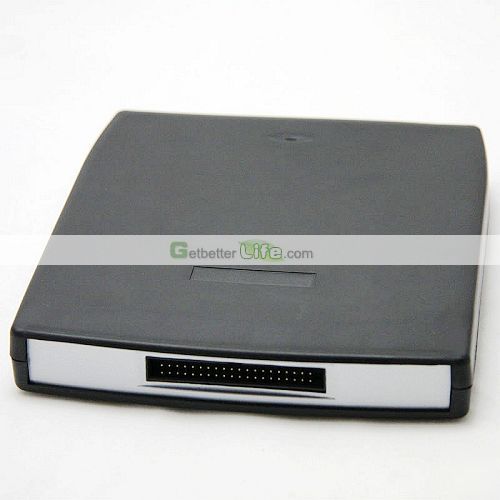

LA-5034 Probes Digital Logic Analyzer Oscilloscopes
150MSa/s PC USB Digital Storage Oscilloscope DSO-2...
DSO-5200A PC USB digital storage oscilloscope
* LA5034 have a sufficient number of input channels capable of simultaneously observing a lot of information or data flow direction control information, and in some way to capture narrow pulse interference
* LA5034 has delayed the ability to capture the required observation points around the waveform, in a variety of digital information capture function.
* LA5034s have memory capacity, to be able to see the occasional error messages, and the memory can find fault in the source state.
* LA5034 with intuitive and flexible displays to facilitate dynamic analysis, can transform the information, you can use the binary, decimal, hexadecimal or ASCII that information to facilitate the repair process and debug.
* LA5034 triggered in a variety of ways, can be a very long data stream, the analysis of that part of the information to make accurate positioning, which caught right of useful information for software analysis, it can use its tracking function trigger operation procedures. For hardware, trigger function can be detected in the system and that the interference and Burr.
Max record time Compression mode
Max Sample Rate(Compression mode
TTL,LVTTL,CMOS,LVCOMS,ECL,PECL,EIA
Operating system: Windows 2000, Windows XP ,VISTA
