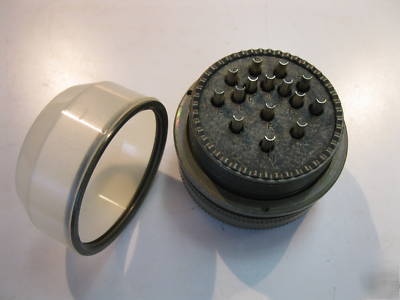

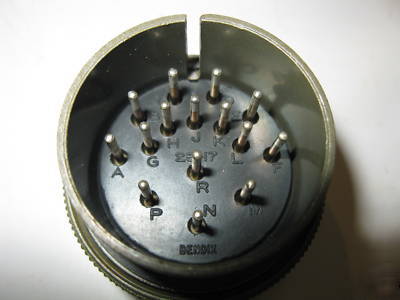

Electrical plug connector p/n MS25183-28-17P mil spec
Cross Reference # MS25183-28-17PW
3B STRAIGHT SHAPE, INTERNAL COUPLING
INTERNALLY THREADED COUPLING NUT
CONNECTOR CABLE STRAIN RELIEF METHOD
CONTACT POSITION ARRANGEMENT STYLE
1 SINGLE MATING END 1ST CONTACT GROUPING 3 SINGLE MATING END 2ND CONTACT GROUPING 11 SINGLE MATING END 3RD CONTACT GROUPING
NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM CURRENT RATING IN AMPS
22.0 SINGLE MATING END 1ST CONTACT GROUPING 22.0 SINGLE MATING END 2ND CONTACT GROUPING 22.0 SINGLE MATING END 3RD CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS
1750.0 SINGLE MATING END 1ST CONTACT GROUPING 900.0 SINGLE MATING END 2ND CONTACT GROUPING 500.0 SINGLE MATING END 3RD CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS
2450.0 SINGLE MATING END 1ST CONTACT GROUPING 1250.0 SINGLE MATING END 2ND CONTACT GROUPING 700.0 SINGLE MATING END 3RD CONTACT GROUPING
GOLD AND SILVER SINGLE MATING END ALL CONTACT GROUPINGS
SOLDER WELL SINGLE MATING END ALL CONTACT GROUPINGS
BACK SINGLE MATING END ALL CONTACT GROUPINGS
MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT
81349-MIL-C-5015 SPECIFICATION
81349-MIL-C-5015 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL AND WEIGHT
0.015 GOLD GRAINS, TROY AND 0.015 SILVER GRAINS, TROY
