#P1501 pfauter universal gear hobber

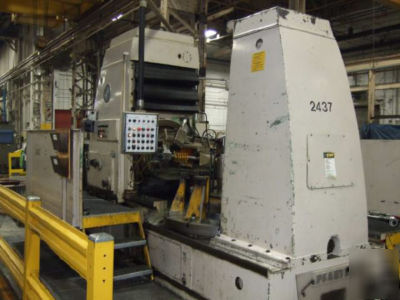

#P1501 PFAUTER UNIVERSAL GEAR HOBBER
New 1976, Serial No. 24998, Model P1501
Full Pendant Control - Automatic Hob Shifting
Two Cut Workcycle - Chip Conveyor
Index & Differential Change Gears
Single Index - Tangential Cutting
Tailstock - Hob Arbors - Operator Platform
Workpiece Diameter, Maximum............ 59"/1500 mm
Axial Travel, Maximum.................. 23.62"/600 mm
DP Module In Steel, Maximum............ 1.5 DP/ 16mm
Ctr Dist Between Workpiece & Hob Min... 2.36"/60mm
Ctr Dist Between Workpiece & Hob Max... 34.25"/870 mm
Hob Diameter, Maximum.................. 10"/254 mm
Hob Length, Maximum.................... 11"/280 mm
Hob Travel, Maximum.................... 10"/254 mm
Work Table Diameter.................... 47.24"/1200 mm
Table Weight Capacity.................. 11,000 LBS
Table Weight Capacity.................. 5000 kG
Dia Of Work Table Bore................. 12"/305 mm
Hob Speeds, Infinitely Variable........ 30-180 RPM
Axial Feeds, Infinitely Variable....... .020-.240 IPR
Axial Feeds, Infinitely Variable....... .5-6.000 mm/pr
Radial Feeds, Infinitely Variable...... .007-.084 IPR
Radial Feeds, Infinitely Variable...... .170-2.000 mm/pr
Tangential Feed, Infinitely Variable... .008-.096 IPR
Tangential Feed, Infinitely Variable... .200-2.500 mm/pr
Weight Approximately................... 41300 LBS
PRICE: F.O.B. BEFORE REMOVAL.......... $149,500.00
