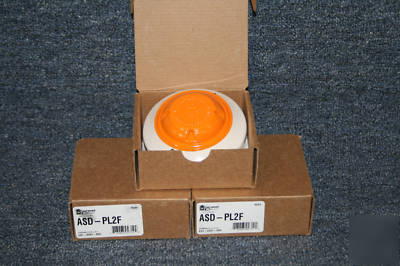

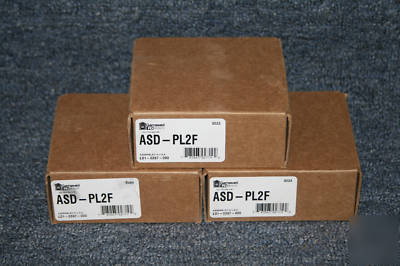

New fci addressable smoke detector heads QTY3 asd-PL2F
The Gamewell-FCI Velociti Series, analog address-
able plug-in smoke sensors with integral communica-
tion provide features that surpass conventional
sensors. Sensitivity can be programmed in the con-
trol panel software, and is continuously monitored
and reported to the panel. Point ID capability allows
each sensor s address to be set, providing exact
locations for selective maintenance when the cham-
ber contamination reaches an unacceptable level.
The ASD-PL2F photoelectric sensor s unique optical
sensing chamber is engineered to sense smoke pro-
duced by a wide range of combustion sources. Dual
electronic thermistors add 135 F (57 C) fixed-tem-
perature thermal sensing on the ASD-PTL2F model.
The Velociti Series use a communication protocol
that substantially increases the speed of communica-
tion between the sensors and certain Gamewell-FCI
analog addressable fire alarm controls. These
devices operate in a grouped fashion. If one of the
devices in the group has a status change, the panel s
microprocessor stops the group poll and concen-
trates on the single device. The net effect is a
response speed up to five times greater than earlier
ASD-PL2F Analog, addressable photoelectronic
Visual rotary, decimal switch addressing (01-159)
Built-in functional test switch activated by an external
Bicolor LEDs flash green whenever the sensor is
addressed, and light steady red on alarm*
Optional relay, isolator, or sounder bases
Analog addressable communication
Stable communication technique with noise immunity
Optional remote, single-gang LED Indicator (RA400Z)
Compatible with Gamewell-FCI analog addressable
