> Nettest cma 4000I otdr w/4415 30/28DB sm module
Nettest cma 4000I otdr w/4415 30/28DB sm module
Model/Part No:4415 Our Item ID: 5543

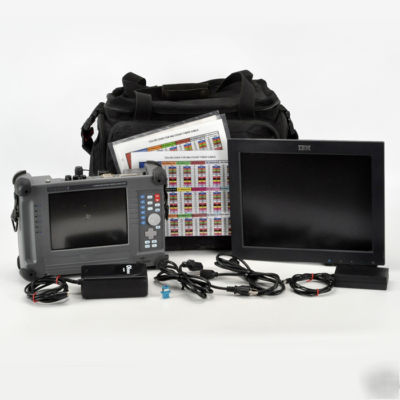

Includes: CMA 4000i, 4415 module, power supply, extra monitor, (screen on unit is non functional) and accessories as pictured.
The CMA4000 Optical Test System is an all-in-one test and measurement solution for network commissioning, fault location/restoration, maintenance, and DWDM spectral analysis. Combining best in class OTDR and OSA performance, modular flexibility and ease-of-use, the CMA4000 is the ultimate time saving system for increasing network performance while reducing the cost of measurement. The Nettest 4000 series OTDR is a great choice for testing and maintaining all your fiber optic lines. It offers all the features of a mainframe OTDR in a rugged, field portable unit. The dead zone and dynamic range performance of the CMA4000 is outstanding and fully configurable. If you are looking for a fast reliable OTDR the CMA4000 should be your first choice. This unit has the 4415 28/30dB SM Single Mode Module with SM OTDR/Source and Power Meter installed as pictured. Screen on unit doesn't work, so we added an extra screen in with unit.
When it comes to tiber optic testing, time is money. That's why we designed the CMA4000. It offers all the features of a mainframe OTDR in a rugged, economical, field-portable unit and its unique features make it better than other OTDRs. Intelligent software minimizes necessary steps to perform frequent functions, its multi-tasking ability allows the CMA4000 to test, analyze and display data faster than any other OTDR available. Plus, it has incredible deadzone, dynamic range performance, tri and quad-wavelength optics and is fully configurable. In other words, it's the only piece of equipment you'll need for all your basic fiber optic testting -whether for installation, maintenance or fault location.
The CMA4000 makes your job faster and easier with dozens of unique features:
Automatic evaluation of the test fiber for connection quality and traffic
Multi-tasking software simultaneously tests and analyzes trace data to display results in seconds
A panel of dedicated keys for easy access to functions you use most, as well as, a convenient onboard keyboard for entering file names
Automated software prompts the user for required information about the cable under test and keeps track of the fibers as they are tested
Easy documentation makes it simpler for you.
The programmable autosave lets you save test results on me hard drive or floppy in a format rhar makes sense for your network. These fearures virtually e1iminare typing mistakes while saving time in the field. When used in conjunction with our GN NetWorks Software, the CMA4000 can perform a variety of trace manipulations, such as trace overlay, graphing, batch printing and bi-directional averaging reports.
Incredible dynamic range and short deadzones.
The CMA4000 offers a test range of 21 to 46 dB, the highest dynamic range in the world. That means you can test longer lengths of fiber with greater resolution and less averaging time. Plus, with deadzones as short as 2.5 m, you can be sure you're getting complete and accurate data for your entire length of cable.
The best value for your money.
The CMA4000 is the one piece of equipment that can meet virtually all your basic fiber optic testing needs. If you choose to incorporate a standard power meter, optical return loss test set, light source and visual fault locator, ir's the only piece of equipment you'll need. You can also customize your unit with optional languages, power cords, connectors, keyboard layouts, and date and time formats. The built-in keyboard lets you enter important text data, and the large 8.4" display with optional VGA color and flexible configuration makes the screen easy to read under any testing condition. Plus, the environmentally sealed modules and buttons - along with its rugged casework -protect the CMA4000 from dust, rain and impact.
GN Nettest. The premier name in fiber optic testing.
For over 30 years, the GN Nettest Optical Division has designed easy-to-use test and measurement equipment for the growing fiber optic industry. During this rime we have become the leading optical test and measurement company, providing solutions for DWDM systems to fiber manufacturing. As a result of our successful solutions, over 95% of the world's fiber has been tested using GN Nettest equipment.
Click on the Additional Information button for specific specifications on unit types.
VGA LCD Display (8.4 color or 8.2 monochrome)
Up to 125 traces internal storage. Over 65,000 traces with optional hard drive.
Up to 180 traces for a standard 3.5 inch, 1.44 MB floppy disk.
Floppy disk drive comes standard
Group Refractive Index Setting
ORL, 2-point, 2-point LSA, dB/KM, dB/KM LSA, splice, reflectance
Overlay, Delta Trace Compare, Align
Real Time, Fast Scan, Medium Scan, Slow Scan, Timed Average (user selectable)
Trace display, FAS event table, integrated trace display with event information window, header page,
measurement parameters, ASCII report
High speed integrated fiber analysis
0.125/0.25/0.5/1/2/4/8 dB (module dependent)
0.001 km/div. to 0.448 km/div @ 2 km; 0.001 km/div. to 57.304 km/div. @ 256 km (IOR = 1.5)
Standard: Integral alpha-numeric keyboard, (2) RS-232 Serial, (1) Parallel, VGA, Mouse,
English standard (others per request and may require hard drive option)
9.5 H x 13.5 W x 3.75 D (24.1 x 34.3 x 9.5 cm) / 11.0 lbs. (4.9 kg)
Includes mainframe, battery and one module
Autoswitching 92-132 VAC, 47-63 Hz [weight 1.7 lbs. (.77 kg)]
Sealed Lead Acid Battery Pack [weight 1.4 lbs (0.63 kg)]
up to 9 hours maximum per battery,
0 C to 45 C (32 F to 122 F) 0 C to 40 C (32 F to 104 F)
95% RH max., non-condensing 95% RH max., non-condensing
-25 C to 60 C (-13 F to 140 F)
Item Tested?: Partially TestedPhysical Condition: Fair; Working Condition: Not Fully Test, but Powers Up26 | 20x 16x16 | 1
