> Vega 48" 1553 wood lathe woodworking turning machine 5K
Vega 48" 1553 wood lathe woodworking turning machine 5K

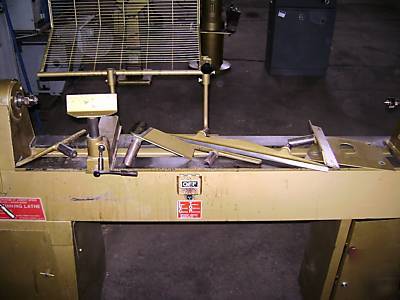

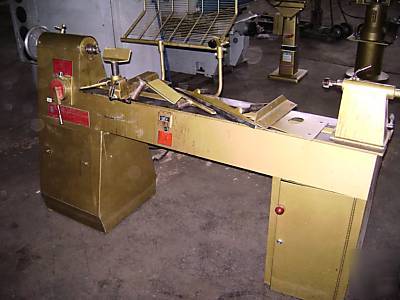

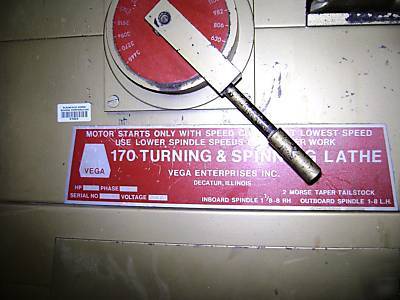

VEGA Model 1553 14"x 48"wood lathe
Just in from a local high school shop. This machine is in great condition and has not seen any production usage. NICE

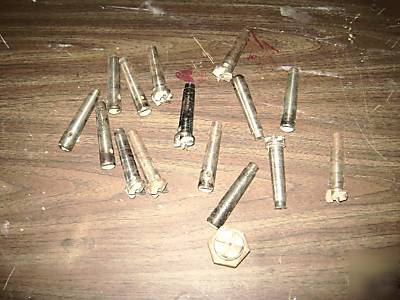

steady rests, morse no. 2 holders, etc.
The lathe bed is fabricated from 4" x 3" x 3/16" wall structural tube which yields a very rigid and wide lathe bed for excellent tool rest support. Holes are provided at the tailstock end of the machine for filling with concrete or sand if desired. (Concrete has 11 times the vibration absorbing capability of cast iron).
The 1500's headstock spindle is precision CNC machined from 1 1/4" round stock. It is supported i in the cast iron headstock by an oversize 30 MM double row ball bearing on the inboard and a single row 30 MM single row bearing on the outboard side. This combination of bearings provide very high end thrust and axial load capacities with essentially zero end play. The spindle has a #2 morse taper and is through drilled for spur center extraction and gun drilling if desired.
The tool rest base is a heavy steel weldment which is then surface ground on both sides. The tool rest itself is fabricated from 3/16" x 3 1/2" steel (for a slim cross section) and welded to a 1 1/4" shank for excellent rigidity.
Made from cast iron, the tailstock of this lathe utilizes a large diameter handwheel for the ram advance, a hefty 1 1/4" spindle with a #2 morse taper, and a 5/8" acme screw. Positive locking of the tailstock to the bed of the lathe is done through a top mounted handle.
This is standard on all versions of the 1500 series lathe. The reasons for this are two fold. First, reversing the rotation direction for sanding reduces the amount of sanding required and makes it safer. Second, if using a duplicating attachment, you can position the tool rest on the back side of the lathe, and still hand turn with the lathe running in reverse. Faceplates are secured by a brass tipped set screw for reversing.
BASIC A/C WITH DRUM REVERSING SWITCH
The basic variable speed drive system consists of a 2 step pulley on the Headstock spindle and a high quality variable pitch pulley on the motor shaft. This combination yields a high and low ranged with infinitely variable speeds in each range. Speed change is accomplished by simply raising or lowering the motor. The standard motors on the 1500 series lathes are American made TEFC (totally enclosed fan cooled) Standard motors for the different models are as follows ; 1553 - 1HP, 1596 - 1.5HP, 14120 - 2HP.
The welded steel mesh of this unique safety guard provides far greater impact protection than plastic. Equally important, it provides a clear view of the work. Plastic shields actually attract sanding dust, consequently are typically not used. The steel mesh ins out of the focal range of the operator so it t imparts very little visual obstruction. The safety shield is mounted on a steel track that runs the length of the lathe bed. It is mounted on rollers, making it easy to position where you want it. A unique locking system automatically locks the guard when the mesh is lowered. It is also available as a kit to mount on other lathes.
OUTBOARD TURNING SUPPORT (Accessory)
The massive outboard turning support bolts directly to the end of the lathe. This provides very secure tool rest support that is necessary for safe and controllable outboard turning. This is not obtainable with traditional pedestal supports. If large diameter outboard turning is going to be done on the lathe we strongly suggest the 2HP Inverter Drive Option. It provides the low RPM's needed for safe turning of large pieces.
Live Center (1596/15120)
Spindle Speed (standard A/C)
Spindle Speed (Inverter Drives)
Drill Through Headstock Center
