J168 rfid reader access control time clock attendance

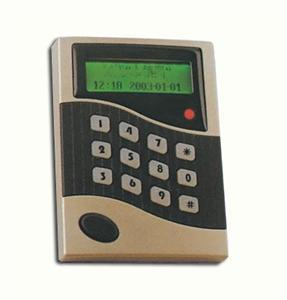

J168 RFID Reader Access Controller with T/A software
* Memory capacity: 1,000 user cards and passwords
* 8 restricting access time periods can be set each day
* Three ways of operation 1. Proximity Card only 2. Proximity Card or password 3. Proximity Card and password
* RS485 bus network communication
* Max number of controller connection: 16
* Main I/O function: electric-lock, open button, alarm, reed switch and door bell
* Management software integrated with access controller, attendance and personnel information
* Real time monitor can be integrated with electronic map, freely set name and position for doors
* Display name, photo, card code and serial number of the access person in real time
* User-defined attendance regulations and shift set etc
* Automatically counts times and duration for late, leave, and absent personnel
* Attendance records can be printed in report from or exported in excel format
* Current comsumption: <60mA
* Current to open E/M lock: <1000mA
* Dimension: 117mm 117mm 21mm
* Operating Temperture: (-20C 70C)
* Proximity card reader/Keypad x1
* CD for management software
