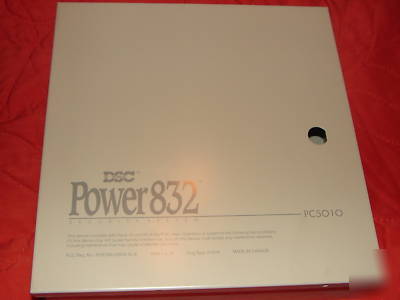

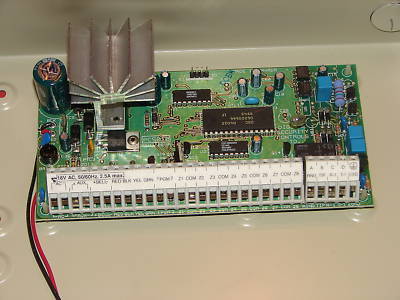

Dsc security PC5010 power 832 alarm control panel
THIS A USED DSC SECURITY PC5010 POWER 832 SERIES 8 WIRED ZONE ALARM CONTROL PANEL. COMPATIBLE WITH 2 WIRE SMOKE DETECTORS.
38 Access Codes: 32 User, 1 System Master, 2 Partition Master, 2 Duress and 1 maintenance
Keypads with zone inputs available (PC/KP5508Z, PC/KP5516Z, PC/KP5532Z, LCD/KPL5500Z, LCD5501Z, PC5502Z2)
Hardwired expansion available using the PC5108 Eight Zone Expansion Module
Wireless expansion available using the PC5132 Wireless Zone Expansion Module (up to 32 wireless zones,
Normally Closed, Single EOL, or Double EOL zone supervision
2-Wire Smoke Input (via PGM2 input)
27 Zone Types, 8 Programmable Zone Options
Supervised Bell Output (current limited at 3 amps), 12 V
Will not lose programming or system status on complete AC and Battery failure
Up to 14 Programmable Voltage Outputs, 23 programmable options
One High Current (300 mA) PGM output with 2 wire smoke detector capability on main panel
Maximum Loop Current is 1.5 mA when the 2-wire smoke detector configuration is used
One Low Current (50 mA) PGM output on main panel
Eight Additional Low Current (50 mA) PGM outputs available using the PC5208 module
Four High Current (1 Amp) PGM outputs Available Using the PC5204 module
1 PC5204 Output Fully Supervised for Siren Output
Powerful 1.5 Amp Regulated Power Supply:
500 mA Auxiliary Supply, 12 V
Positive Temperature Coefficient (PTC) components replace fuses
Supervision for loss of AC Power, Low Battery
Internal Clock Locked to AC Power Frequency
Transformer = 16.5 VAC, 40VA
Battery = 12 volt 4 Ah minimum rechargeable sealed lead acid
Keypads Available - PC5508(Z)/KP5508(Z) 8 Zone LED keypad, PC5532(Z)/KP5532(Z) 32 Zone LED keypad,
PC5516(Z)/KP5516(Z) 16 Zone LED keypad, LCD5500(Z)/KPL5500(Z) alphanumeric keypad, LCD5501Z Fixed
message LCD keypad, PC5502Z2 2 zone LED keypad, LCD5501Z32-433 keypad/receiver.
Each Keypad has 5 Fully Programmable Function Keys Connect up to 8 Keypads
Four Wire (Quad) Connection to Keybus Built in Piezoelectric Buzzer
Digital Communicator Specifications:
Supports all Major Formats including SIA and Contact ID Event Initiated Personal Paging
3 Programmable Phone Numbers 2 Account numbers
Supports LINKS1000 Cellular Communication DTMF and Pulse Dialing
DPDT Line Seizure Anti-jam Feature
Split Reporting of Selected Transmissions to Each Telephone Number
EOL'S AND TRANSFORMER INCLUDED. UNIT HAS BEEN TESTED AND RESTORED TO FACTORY SETTINGS, INSTALLER AND MASTER CODE PROVIDED. UNIT IS IN EXCELLENT CONDITION. REMOVED FROM WORKING SYSTEM DURING SYSTEM UPGRADE.
