200MW 405NM blue-violet laser diode boost drive module

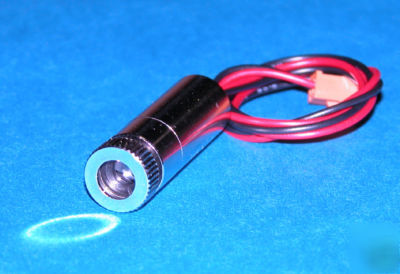

180mA(180mW) 405nm Blu-Ray Blue Violet Laser Diode Module with builtin Boost Driver
There are countless uses for a small compact Blue - Violet laser, such as LASER LIGHT SHOWS, Medical, PCB Photo etching, etc...
It can light cigarette, punch black vinyl and can Burn copy paper.
Laser diodes are rated for Class IIIb 180mW @405-410nm CW extract from never used Blu-Ray Driver.
Eventhough this diode can drive up to 300mW.
This module use acrylic lens(180mW) but can order optional 405nm AR coated glass lens( $17 - 200mW) .
Max Output : ~180mW(180mA) or ~200mW with optional 405nm AR coated glass lens.
Module : 12mm diameter x 30mm length with plastic lens
Lease wire 30cm(Red plus[+], Black minus[-]) with 2.5mm pitch Connector.
Driver : Builtin boost driver Size about 10x16mm(driver can change)-Inserted in collimator housing
For order heat sink or glass lens, Please "request total" from paynow page before pay.
