New baileigh sh-5203HD 52" 3 ga heavy duty hyd shear

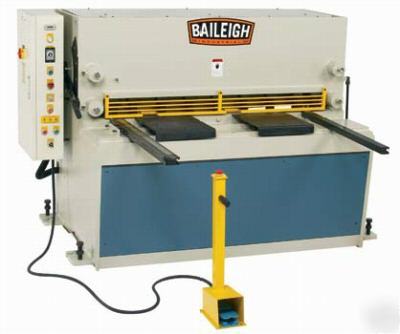

New Baileigh Model SH-5203HD 52 Long 3 Gauge Capacity Heavy Duty Hydraulic Shear, 15HP, 220V, 3PH
Capacity is 3 gauge mild steel or 7 gauge stainless steel
Hold downs included are 9 with 3.2 tons of pressure
Top blade has hydraulic adjustments for the rake angle
Top blade rake angle 1/2-2 degrees
Hydraulic Oil Capacity is 30 gallons
Packing size is 90 x 48 x 64
Service requirement is 220 Volt, 3 Phase, 60 Hertz
The SH-5203 hydraulic plate shear has a massive electro welded frame and upper carriage that allows this 52 machine to cut 1/4 mild steel smoothly. The hefty upper blade carriage has hardened bearings on three axis that run in hardened polished and ground tracks, making it a very smooth running machine that extends blade life.
This hydraulic plate shear has a heavy infeed table with roller bearings to assist feeding the next piece of material to be cut. The blades have multiple cutting edges that extends blade life. There is an adjustable blade gap lever that can be changed in seconds when changing thicknesses. Independent hydraulic hold downs firmly hold the metal as it is being cut eliminating lifting and increasing the life of the machine and blade.
The well laid out control panel has an adjustment for changing the blade rake that eliminates curl and twist in the cut. This hydraulic plate shear can be run in the jog mode, single cycle mode, or continuous cycling mode.
Baileigh s hydraulic plate shears are built to withstand years of production and offer more quality for the investment. We offer the perfect hydraulic shears for the fabricator of heavy plate metal.
