Kenwood sg-5155 fm-am signal generator

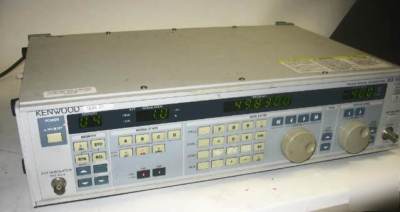

KENWOOD SG-5155 FM-AM Signal Generator. This one seems to be working but shows some wear. A few of the numbers on the keypad are worn, and the plastic pieces on the back that you would wrap a cord around are missing. But it powers up correctly, numbers change when you push the different buttons etc. Further testing is beyond my knowledge, so I have priced cheaply.
AS I CANNOT TEST ANY FURTHER I AM SELLING WITH A NO DOA WARRANTY. IF IT POWERS UP AND LIGHTS DISPLAY, IT IS YOURS. Then again, this sells for $2600 new. Even if you spent $500 getting it repaired, you still have a $2600 unit for under $1000.00.
100 kHz - 150MHz, AM/FM Signal Generators
* The STO and RCL keys can be used to store and recall the programmed values.
* The storage and recall of up to 100 front panel setting conditions are possible. By using the optional RT-150 Remote Controller, it is possible to remotely control all operations.
* The frequency is shown on a 7-digit LED display. It is not only continuously variable but an arbitrary digit can be varied by aligning the cursor. In addition, a F display is provided.
* The stereo modulation has excellent distortion figures, S/N ratios and separation characteristics. A preset key enables the setting of the modulation depth to 30% or 100%
* Compatibility with the GP-IB (factory option) enables automated measurements.
* The RF signal is generated with high precision by a highly stable PLL synthesizer technique.
* The output level can be set in the range from -20dB to 100dB in 1dB steps by a high-accuracy attenuator.
The SG-5150 is a programmable FM stereo/FM/AM standard signal generator integrating an RF signal generator with continuous coverage in the range from 100 kHz to 150 MHz & a stereo signal generator. This is the ideal choice for production line quality control and the servicing of products including not only FM/AM radio and FM stereo tuners but cordless telephones as well. All operations can be remotely controlled by using the optional remote controller or the GP-IB (factory option) which also allows improved efficiency in the design and production departments. The SG-5155 is a FM standard signal generator integrating an RF signal generator with continuous coverage in the range from 100 kHz to 150 MHz.
