Bodine right angle gear motor 220 1 phase 8 rpm

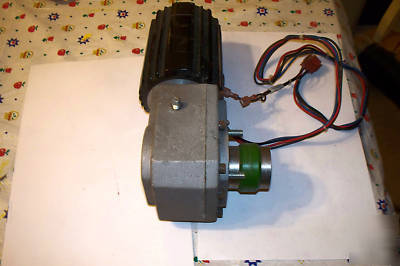

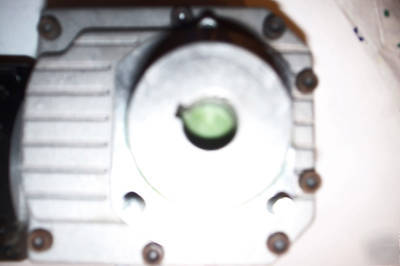

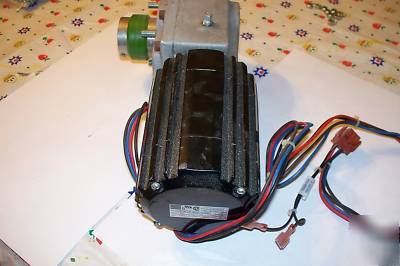

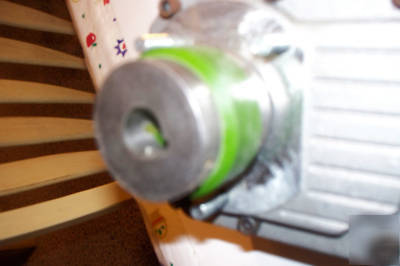

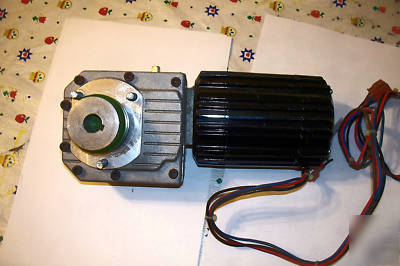

THIS IS A BODINE ELECTRIC GEAR MOTOR, RIGHT ANGLE DRIVE. HORSEPOWER IS .13(1/8). IT IS A 220/240V AC SINGLE PHASE. MOTOR SPEED IS 8 RPM@220V, 10 RPM@240V OUTPUT AT THE 5/8 OUTPUT SHAFT. ATTACHED TO THE SHAFT IS A FEMALE TO FEMALE COUPLER WHICH IS REMOVABLE. TORQUE IS 300 INCH LBS. OVERALL LENGTH OF THE WHOLE UNIT IS 11". THERE ARE (3) 5/16 THREADED MOUNTING STUDS ON THE SIDE OF THE GEARBOX AROUND THE SHAFT AS SHOWN IN THE LAST 2 PICTURES. YOU WILL EITHER HAVE TO FABRICATE A MOUNTING BRACKET OR SIDE MOUNT THIS UNIT DIRECTLY TO THE SIDE OF WHATEVER YOU WILL BE RUNNING IT ON.
THIS WOULD BE A GREAT UNIT TO MOUNT ON A COMMERCIAL ROTISSERIE OR SUCH UNIT. gREAT TORQUE.
