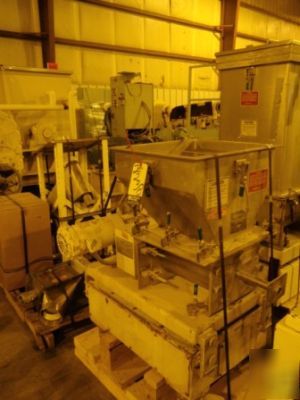

Acrison weigh-loss differential ingredient feeder
Acrison Weigh-Loss Differential Ingredient Feeder
weigh-loss differential ingredient feeder
The Following information was provided by the Manufacturer.
Metering Accuracy - is typically +/- 0.25 to 1% or better (error) at two sigma based on a given number of consecutive one minute weighments.
Versatile - wide range of metering mechanisms are available providing an overall output capacity ranging from a fraction of a pound to thousands of pounds per hour.
Unique Ratiometric Digital Weight Resolver - is extremely precise, calibration and adjustment-free, and cannot be damaged by any amount of shock or overload the weighing system may experience.
Weighing Mechanism - extremely stable, ruggedly constructed, and permanently calibrated; longevity is unsurpassed.
All Steel Construction - provides long-term reliability with minimal maintenance requirements.
Uniquely configured, technologically advanced, state-of-the-art lever network utilizing Acrison designed heavy-duty stainless steel flexures for all pivotal connections
Acrison Flexures provide optimum structural rigidity of the lever network, frictionless operation and ensure permanence of the weighing system s accuracy and calibration
Ratiometric Weight Resolver System:
Linear to within 0.01%; repeatable to 0.005%; possesses long term stability of 0.005% (10,000 hours), and carries a 40,000 hour MTBF
FM (Factory Mutual) Approved and Listed for operation in hazardous environments
Output Capacities: Ranges from a fraction of a pound to several thousand pounds per hour (based on a product weighing 40 lbs. per cubic foot)
Feed Range: 100:1 from the maximum designed output capacity of the specific model or size feeder
Ambient Temp. Operating Range: -10 to 140 F
Electrical Power Requirements: Either 115/1/60 or 230/1/60 depending upon the feeder model and/or size; motors are totally enclosed
