200 ton dake 4-post heated platen hyd press #25275

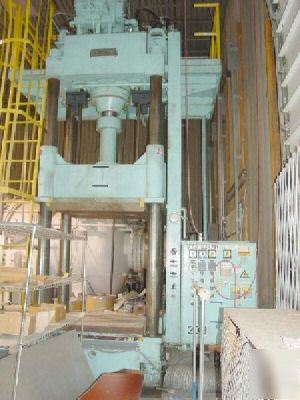

200 TON DAKE 4-POST HEATED PLATEN HYDRAULIC PRESS
New 1967, Serial No. 157056, Model 27-506
Dwell Time Monitor - Press Force Monitor
Tonnage Capacity, Stroke Down............. 200 TON
Tonnage Capacity, Stroke Up............... 75 TON
Stroke Length, Variable................... 0 to 60"
Daylight w/2" Platens,Maximum............. 84"
Platen Area, L-R x F-B.................... 48" x 50"
Closing Speed, Advance.................... 300 IPM
Closing Speed, Breakaway.................. 2 to 20 IPM
Pressing Speed, Range..................... 1 to 6.6 IPM
Return Speed, Rapid....................... 300 IPM
Hydraulic Motor, Horsepower............... 25 HP
Electrical System......................... 230/3/60
Floor Space Required, W x D............... 6'6" x 8'9"
Overall Height............................ 20'9"
Weight, Approximately..................... 28000 LBS
PRICE: F.O.B. OUR WAREHOUSE.............. $24,500.00
