( 2 ) *ingenious and unique* 3-way 4PDT* mini-toggles
Win (2) - 4PDT Momentary Toggle Switches
LOOK! Versatile Switching Action, Endless Possibilities
Independent control of 2 separate DPDT's with one lever!
You won't find this switch anywhere else but here! See description below.

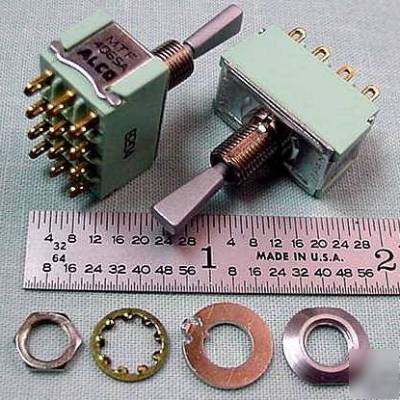

* 4PDT - Momentary, unique switching action
* Sections operate in pairs - see matrix above
It's like two independent DPDT toggles
* Commercial Quality by ALCO
* Rated 6A @ 125VAC or 3A @ 250VAC
* Sealed, Gold plated terminals lugs
(easy soldering, prevents corrosion)
* Gold flash over Silver contacts
Approximate dimensions: Bat Handle length is 1/2"
Body size: L 29/32", W 1/2", D 19/32" (including terminals)
Packaged individually in original OEM bags
Short description: 4 separate, three-terminal, SPDT, momentary switches operating in pairs. Pressing the lever in one direction toggles only two sections. Pressing the lever in the other direction toggles the other two sections.
Long Description: This switch has a really clever momentary switching matrix which makes it extremely versatile. There are four SPDT switches operating in pairs. When the lever is in the center rest position, each individual section has an open terminal and a closed terminal, just like a typical SPDT. But the neat trick is when you pull the lever up from center, only two sections toggle; the other two sections remain unchanged. When you push the lever down from the center rest position, the other two sections toggle leaving the first two unchanged.
Just a few possible applications:
* Use on reversible motors, latching relays..etc.
* Control 2 independent electrical systems.
* Polarity reversal applications.
* Small enough to use even if you just need one section.
* Sections 1 & 2 and 3 & 4 can be parallel wired for higher current capacity.
* Unbeatable versatility for multiple independent bi-directional control.
