Paint auto body shop water proof booth stall barn light
This amazing light is available in 4 versions below!
The asymetric reflector (aimable) is great for mounting on or near walls. The wide area reflector (flat) is best used in the middle of a ceiling. Either of these lights is available with 5000K or 6500K bulbs. The 5000K bulbs simulate sunlight and are best used for color matching. The 6500K bulbs make a brilliant blue white light, just like the afternoon sky. Most people prefer 6500K bulbs for shop work. By default, this listing comes with bright white 6500K tubes and the wall mounting asymetric (aimable) reflector.
The photos just below are links to the other versions of this light, as well as to the store listing for this item - in case you need more than one. Just click the photo to go to the one you are looking for!

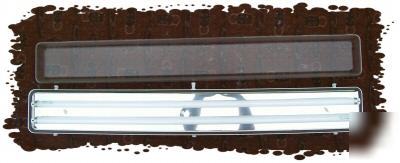

High Output T8 Sealed & Gasketed 4 Light with
.. Any Place a Dust Tight, Vapor Tight or Wet Location light is needed!
This has proven to be the most popular Light Fixture we ve ever developed. Although it was first produced for barns, it s low cost & high performance has exploded it s uses into a myriad of applications. There is nothing else quite like it on the market.
Makes a cheery bright white light
Literally brings the outdoors, indoors! Vivid Full Spectrum Prime Color Light is made just where the cones of eye are most sensitive. So it actually looks much much brighter that what a light meter would indicate!
6500K Bulbs Offer Intense Lighting.
This fixtures bulbs simulate natural daylight in the middle of the afternoon. These bulbs have a blue tint to them just as natural daylight does. Due to the Perkinje effect, the human eye uses this high energy, high color temperature light more efficiently. Lower color temperature bulbs look dingy and yellow in comparison.
Optional 5000K Bulbs are Great for Color Matching.
These simulate natural sunlight just before noon. 5000K bulbs have more of a neutral white color that is perfect for painting, or other tasks requiring color matching.
It s a 4 light that s brighter than most 8 footers!
This is a true High Output fixture. (Details later)
Uses 40% less energy than old fashioned T12 fixtures.
YOUR CHOICE of Two Mirror-Like Reflectors
that let you aim light where needed!
This fixture ordinarily comes with an aimable reflector. It shines light under cars and away from walls. Light up your work, not the ceiling! We also offer this same fixture with a flat wide area reflector. See our links to other versions!
with Long Lasting Bulbs that are cheap to replace!
SAVE $Big Bucks$ on Electricity!
Our Fixture Replaces Four 100 watt light bulbs using only 80 watts. That could be a $480 savings over the life of the bulbs.(320 watts saved x 18.75 khr life x $.08/Kwhr)
It makes lots of light with little heat. Electronic fluorescents don t heat up like regular ones.
Fluorescents provide even, glare free, shadow-less illumination.
It s Sealed against Dust and Moisture.
If you don t enclose fluorescent bulbs, the tops of the bulbs load up with dust due to static attractions. You simply do not get the light you are paying for. Our enclosure keeps your bulbs clean! Our same quality gasketing keeps water out!
The exterior is fiberglass and acrylic with an interior aluminum reflector. It also has a stainless steel mounting bracket.
Keep your animals (and yourself) healthy. (More later)
Unique Reflectors Available (continued)
You can choose one of two reflector systems. All are made of bright highly reflective, lighting grade aluminum. They work just like mirrors.
The problem is this: Say you put a light on the ceiling, right next to a wall. You waste light by lighting up the corner where the wall and ceiling meet. What a waste! On the other hand, our asymmetric reflector reflects light away from the wall and towards the center of the room or what ever you are working on. Because it actually throws the most light off to the side it perfect for shining light in hard to get areas - like underneath an automobile hood. You can also mount this light right on the wall. Take light that would be wasted lighting up the ceiling and direct it down where it can do some good.
It s also a great light that can be used in areas like automobile pits to shine light up.
But if you prefer, we offer an OPTIONAL second flat reflector. See our links above, near the top of this listing. This is the best kind of reflector to get even lighting in a wide area. Everyday common white reflectors don t reflect light like a mirror. White reflectors mainly just light up the area right underneath the fixture. Our flat mirror like reflector, actually bounces about half the light off to the side of the fixture. Therefore, it scatters light much farther to eliminate dark spots.
(1) High Output Electronic Ballast, (80 watt consumption)
(2) 2 x Sunlight Simulating 32T8/865tubes,7440 lumens of light.
(3) Easy to Use Cam Latches snap the lens right in.
(4) IP 65/67 rated: Water jet tight and able to withstand temporary immersion. (WARNING: Not for underwater use)
(5) Cold Starting: 0 degrees Fahrenheit
(6) Reliable Electronic Ballast ( Industrial grade with 5 year manufacturer s warranty) 120-277 volt operation.
(7) Mirror-Like Lighting Grade Aluminum Reflectors
(8) Fiber Glass Housing, Impact Resistant Acrylic Lens
There is nothing else quite like it on the market. We source custom ballasts that can really
pound out the light. This high ballast factor ballast delivers about 40% more light than standard ballasts. That s the Secret that allows our fixture to replace a standard 4 bulb color corrected painting light with just 2 bulbs.
Our ballasts have an extreme temperature rating, 203 Degrees Fahrenheit. So, it s built tough as nails - it can really take the heat. Our experience with regular ballasts is that they simply don t last. People constantly come to us to fix competitor s fixtures.
Our fixtures also correctly and gently ignite the bulbs with an exclusive soft start preheat circuit. So your bulbs last and last.
You see T8 tubes have two pins on each end. Standard ballast designs short these two pins together and hook them up to just one 600 volt lead. By impressing a damaging high voltage, it s possible to cold start the lamp. This cold starting is absolutely devastating to bulb life. It also turns the tube ends black, reducing light output.
Our premium lamp starting design ensures that your bulbs stay nice and bright, and last their full life time.
Anti-stray voltage design (continued) Those of you that milk cows know what stray voltage is. The outer chassis of a conventional steel body fixture provides a path for return current to return to the power company. Stray voltage depresses milk production. So it can t be good for people either. But not to worry- by hooking these fixtures up on 240 volts, neutral to ground feed back is eliminated. Also, these fixtures are made with non conductive offsets that allow you to mount the fixture without grounding out the light. So our fixture can help keep you or your animals safe!
Come to Us for the True High Output T8 s
Our competitors often see our lights and start saying that their ordinary output fixtures that they are selling are really high output too. What a dirty trick! It has happened over and over again. I feel sorry when I meet people that feel they have been cheated. A good part of our business is making rebuild kits to upgrade lights that are too dim.
What s worse is that there is a new kind of shop light on the market. This consumer grade fixture makes exactly 50% of the rated output of the bulb. As one of our distributors who bought one to try said : I only put one light bulb in it, because if you put in two, they will only run at half power.
Here is the difference between normal and high output T8 fixtures. The T8 bulb was first developed in Europe as a 36 watt bulb. But when it was brought over here it was called a 32 watt bulb, but a standard fixture only drives the lamp at 27 or so watts.
So what does this all mean? A standard commercial grade T8 fixture will give you only 85 to 88% of 32 watt rating. The residential grade shop lights give you only 50% to 70% of the 32 watt rating. Our high output fixtures give 120% of the 32 watt rating. Additionally, there are different grades of bulbs, for instance our sunlight simulating 5K bulb makes an additional 9.6% more bonus light than a standard daylight bulb.
