Hp 6634A dc power supply
This series of linear-regulated 80-100 W dc power supplies is designed to maximize the throughput of DUTs through the manufacturing test process. Both programming and measurement are optimized for speed. The active downprogrammer can sink up to the full rated current of the power supply, which quickly brings the power supply output to zero volts. The 6630B Series offers many advanced programmable features including stored states and status reporting. Programming is done using industry standard SCPI commands via the GPIB or RS-232.
The 6634A Power Supply is a 100 watt, single output, series pass regulated supply is rated 100 V @ 1 A. Both the voltage and current output can be programmed for either CV or CC operation. A built-in DCM and precision current shunt measure (readback) the actual power supply output. The internal HP-IB interface allows for complete programmability, including status reporting and interrupt generation with user designated fault conditions.

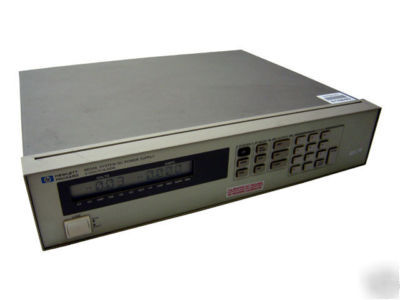

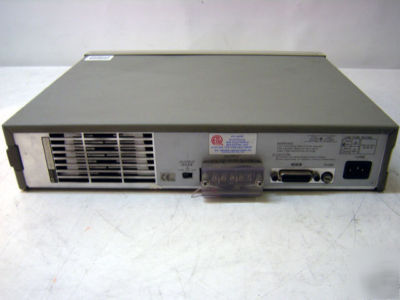

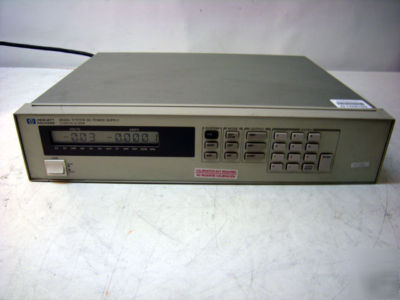

This is a used, HP 6634A DC Power Supply
