19.6" w 0.095" cap. p/a ind SS197D straightener
19.6" W 0.095" Cap. P/A Ind SS197D STRAIGHTENER
19.6" Width 0.095" Cap. P/A Ind SS197D STRAIGHTENER

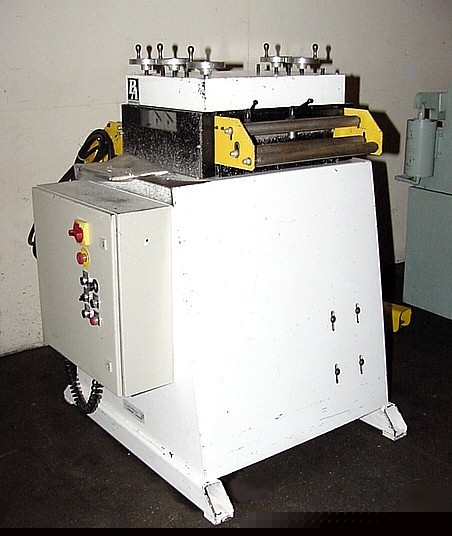

19-1/2" P/A INDUSTRIES STRAIGHTENER
MODEL SS197D S/N 17245-02757554 NEW 2000
WIDTH ....................................... 19.6"
THICKNESS ................................... .020"-.095"
IPM ......................................... 0-900
NUMBER OF STRAIGHTENING ROLLS ............... 7
ROLL DIAMETER ............................... 2.4"
NUMBER OF PINCH ROLLS ....................... 2 ENTRY
....................... 2 EXIT
PINCH ROLL DIAMETER ......................... 2.4"
PASS LINE HEIGHT ............................ 48"
MOTOR HP / VOLTAGE .......................... 2 / 230 / 3ph
DIMENSIONS: 44" W x 45" D x 56" H
