Variable 30V 5A dc power supply lab grade 1 year warran

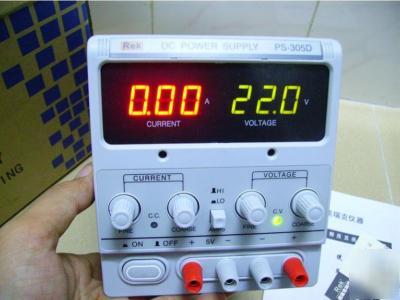

New Variable 30V 5A DC Power Supply Lab Grade
Product Name: Rick PS-305D high-precision DC power supply (0-30V0-5A adjustable, 5V fixed output)
Product Category: Chip-level maintenance tools - Notebook Repair Tools
Product Brand: Shenzhen US Rick
Features: Red LED display current, LED display voltage
A unique fixed 5V output interface
1. Figures show that the output voltage and current.
2. High-precision voltage regulator, steady stream, the output voltage and current can be from 0 to continuously adjustable between the nominal value.
4. With a current-limiting protection and short circuit protection.
(A) Output voltages from 0 to continuously adjustable between the nominal value of
Load stability <0.01% +3 mV (maximum current <3A)
Load stability <0.01% 5mV (maximum current> 3A)
(3) recovery time <100uS (load change 50%, the minimum load current 0.5A)
(4) Ripple noise <0.5mVrms (5Hz ~ 1MHz) (maximum current <3A)
<1.0mVrms (5Hz ~ 1MHz) (maximum current> 3A)
(5) The temperature coefficient of <300PPM /
(1) The output current from 0 to nominal value continuously adjustable between the
