Tree vmc 1050/40 cnc vertical machining center

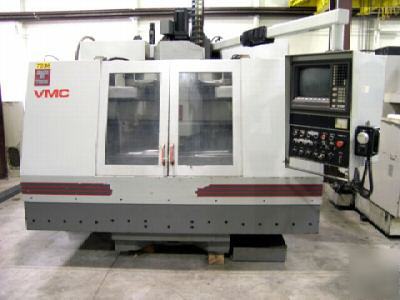

Liberty Machinery Company-You are looking at a Tree VMC 1050/40 CNC Vertical Machining Center* Serial No. 9-20-93-1071Condition - Used
Table Size 50" x 23.8" (1,270 mm x 605 mm)
Floor to Table Surface - Maximum 37.4" (950 mm)
T-Slots (5) Width x Span 0.708" x 4.92" (18 mm x 125 mm)
Maximum Weight on Table 2,000 Lbs. (910kg)
Travel - Longitudinal (X-Axis) 40" (1,016 mm)
- Vertical (Z-Axis) 25" (635 mm)
- Spindle Nose to Table 3.9" - 28.9" (100 mm - 735 mm)
- Spindle Center to Column 25" (635 mm)
Cutting Feed Rate (X/Y/Z) 0.01 - 200 IPM (0.25 - 5,080 mm/Min.)
Rapid Feed Rate (X/Y/Z) 787 IPM (20 m/Min.)
Axis Thrust (X/Y/Z) X/Y - 1,679 Lbs., Z - 2,500 Lbs.
Ball Screw Size 1.575" (40 mm)
Spindle Main Motor 15/20 HP (11.2/15 kW)
Spindle Speeds (2 Ranges) - Low 20 - 2,000 RPM
Spindle Orientation - Electrical, 0-360 Deg. Programmable
ATC - Number of Tools 2 x 20 (Optional)
ATC - Tool Selection Bi-Directional, Servo Driven
Max. Tool Diameter - w/Adjacent Tools 3.54" (90 mm)
- w/o Adjacent Tools 6.30" (160 mm)
Maximum Tool Length 11.8" (300 mm)
Maximum Tool Weight 17.5 Lbs. (8 kg)
Machine Width x Depth with Doors Closed 108.3" x 83.5" (2,750 mm x 2,120 mm)
Machine Height 115" (2,920 mm)
Approximate Machine Weight 16,975 Lbs. (7,700 kg)
DynaPath Delta 30 Autocon CNC Control with Remote Pulse Hand Wheel Control
