New numation air slide & cylinder 2" stroke
NEW NUMATION AIR SLIDE & CYLINDER 2" STROKE

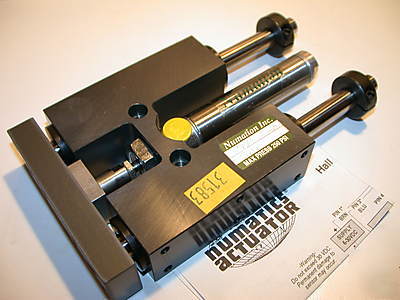

This is a New Numation Pneumatic Linear Ball Air Slide and Cylinder, Model SH07502LB1ZCS4.
This slide has 2 Inches of Stroke, the 2 guide pins measures 1/2" diameter and piston measures 1/4".
The SH Series guided linear motion device capable of heavy loads and moderately long strokes.
Body: Hardcoat anodized aluminum (6061-T6511)
Cylinder: Stainless Steel body & rod (corrosion resistant)
Alignment Coupler: 360 degrees of float, eliminates side-loading of the cylinder
Tooling Plate: Universal mounting pattern with standard dowel locating holes.
Guide Shafts: Hardened Steel, large diameters for increased load capability
Bearings:Precision bearings sealed with rod wipers (self-aligning, self lubricating, low friction, maintenance free)
Bumpers: Durable polyurethane material
Adjustable Shaft Collars: End of stroke adjustment
http:// /deliverables/catalogs/slidesgantries/shseries.pdf
