Emergency battery compact fluorescent iota i-42-em-a
(One 10W-42W Lamp) - 650 lumens
(Two 10W-18W Lamps) - 325 lumens
10W-42W 4-Pin Rapid Start Compact Lamps
(Twin, Triple, Quad Tube, 2D and Straight)
and 18W-36W Long Compact Lamps

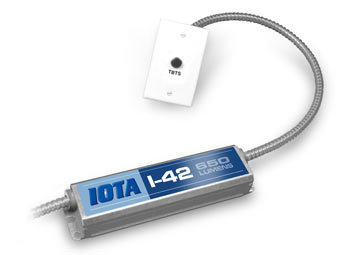

The I-42-EM-A Fluorescent Emergency Ballast allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the I-42-EM-A switches to the emergency mode and operates one or two of the existing lamps for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single can. The I-42-EM-A can be used with most 10-42 watt 4-pin twin, triple, quad tube, 2D and straight compact fluorescent lamps and 18W-36W long compacts, with an initial output of up to 650 lumens for one or two lamps. The I-42-EM-A utilizes AC output to ensure compatibility with new lamp technologies, and features lamp selector leads for optimizing light output for designated lamp types.
The I-42-EM-A is provided with 1/2" flex for wiring to the fixture or ballast compartment. The single-piece TBTS test switch/charge light are provided via 3/8" flex for installation in a standard switch box for mounting in the ceiling adjacent to the fixture. The I-42-EM-A is designed to be mounted on the fixture or in the ceiling adjacent to the fixture, and is U.L. Listed for retrofit applications.
10W-42W 4-Pin Rapid Start Twin, Triple, Quad, 2D
(2) Lamps 325 lumens each lamp
Will cold start and operate all specified lamps
Long-life high-temperature recyclable Ni-Cad battery
5-year warranty. See Warranty Page for details.
Includes combination one-piece TBTS test switch and charge indicator
Meets or exceeds all National Electrical Code and Life Safety Code
Emergency Lighting Requirements
Selectable lamp leads for optimizing light output for desired lamp type
International Voltage and Damp Location Models available
MANUFACTURERS DATE STAMP: 4Q09 (4TH QUARTER 2009)
