Angle plate toolmaker machinist hardened ground 5/16X18

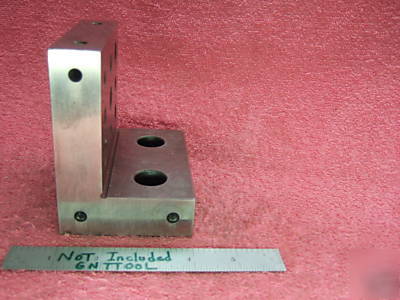

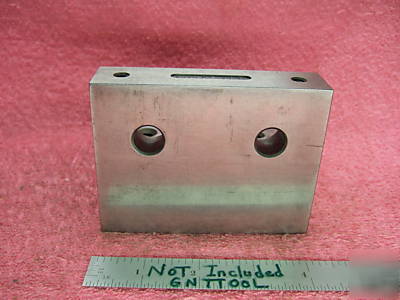

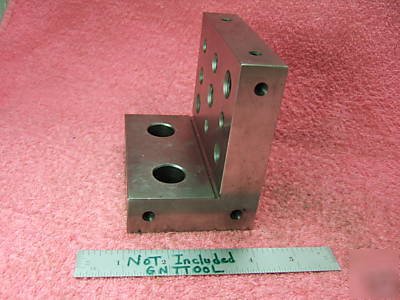

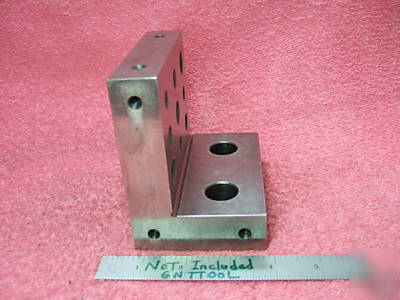

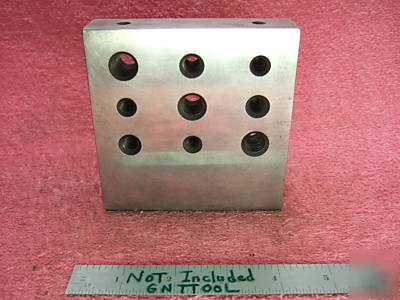

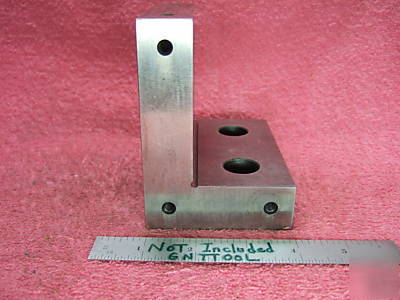

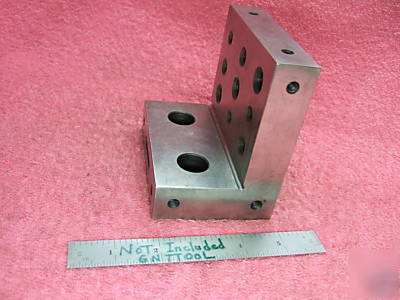

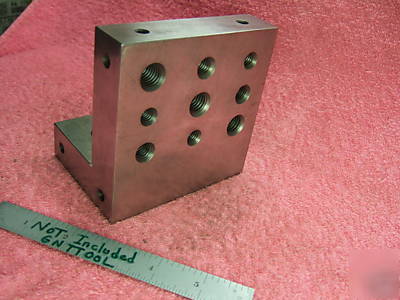

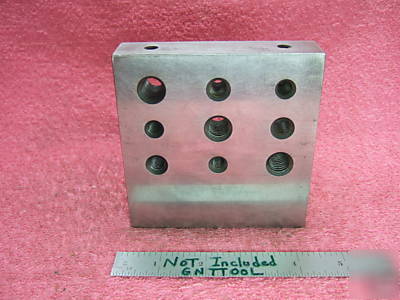

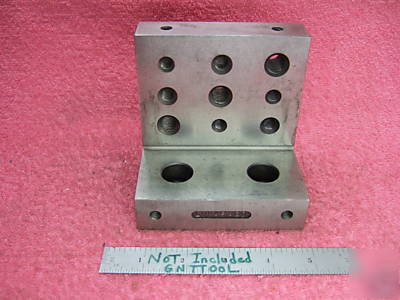

ANGLE PLATE HEAVY DUTY STYLE WITH (2) DRILLED AND COUNTER-BORED HOLES (2) 3/4" X 17/32" FOR 1/2" X 13 SOCKET HEAD CAPSCREWS ON A 2-1/4" SPACING FOR YOUR BRIDGEPORT OR ANY OTHER MACHINE YOU CAN BOLT THIS DOWN TO. PRECISION GROUND LARGER SIZE WITH (10) TAPPED 1/4" X 20 HOLES IN SIDES AND TOPS TO BOLT RAILS OR STOPS IF NEEDED. BLOCK HAS (19 TOTAL) 1/4" X 20 (10) THEN IN ONE FACE IT HAS (3) 5/16" X 18, (3) 3/8" X 16, (3) 1/2" X 13 AS SHOWN. ORIGINALLY GROUND USING HERMANN SCHMIDT SQUARING BLOCK AND A BALL-WAY SURFACE GRINDER WOW IT IS NICE!!!!! PLATE HAS FORMER OWNERS INITIALS STAMPED NEATLY INTO RECESS BEFORE HEAT-TREAT AND GRINDING. WE HAVE MANY TOOLS LISTED BY THIS AMERICAN TOOLMAKER INCLUDING V BLOCKS ,SINE SLIDE DRESSER,SLIDE DRESSER AND MUCH MORE! BE SURE TO CHECK OUR STORE FOR MANY MORE NICE HARD TO FIND TOOLMAKER ITEMS. SEE PICS AND ASK ANY QUESTIONS.

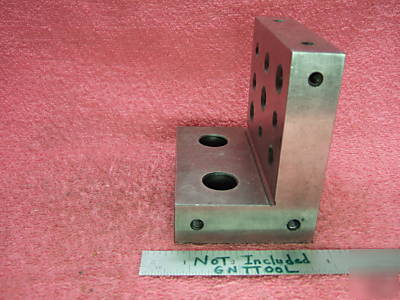

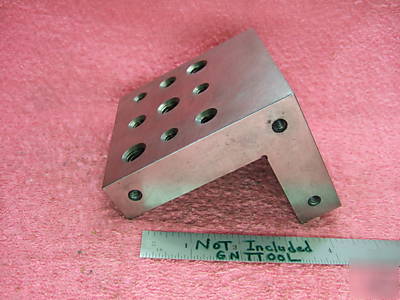

ANGLE PLATE MEASURES 4.265" WIDE X 4.263" TALL WITH SECOND LEG THAT IS 3.140" TALL. NO CRASHES, DRILL MARKS OR MILL MARKS!!!! BLOCK HAS (19TOTAL) TAPPED HOLES AS SHOWN TO BOLT STOPS OR RAILS AS NEEDED, AS SHOWN IN PICS. LONGEST LEG IS 1.02" THICK AND OTHER IS 1.020" THICK SUPER NICE CLEAN READY TO USE PLATE MADE BY AMERICAN TOOLMAKERS!!!!! PLATE IS IN NICE READY TO USE CONDITION AS SHOWN. I HAVE MANY TOOLS TO LIST FROM THIS XCELLENT XCELLENT TOOLMAKER,CHECK BACK OFTEN AND SEE OUR STORE!
