10†bignall-keeler cut off lathe, dual chuck, chamfer

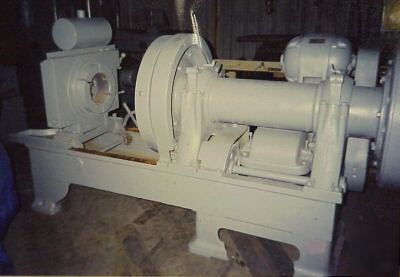

(1) Used 10 BIGNALL-KEELER Cut Off Lathe Type, Single Slide, Dual Chucks, Manual, S/N 4-889
Capacity............................................ 2.5" O.D To 8" O.D. Pipe, Tube & Bar
Spindle Speeds (9)............................ N/A RPM
Diameter of Spindle Hole................. 10"
Carriage Travel................................. 20" (Est.)
Carriage Width.................................. 28"
Motor................................................ 5 HP
Electrical Characteristics.................. 220/440 VAC/ 3Ph
Overall Dimensions: 108" L-R x 44" F-B x 61" High
