Woodmaster 718 planer moulder, sander, ripsaw

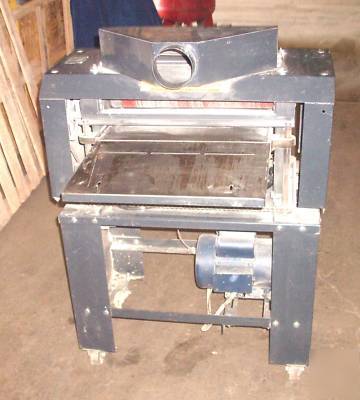

WOODMASTER 718 PLANER MOULDER, SANDER, RIPSAW

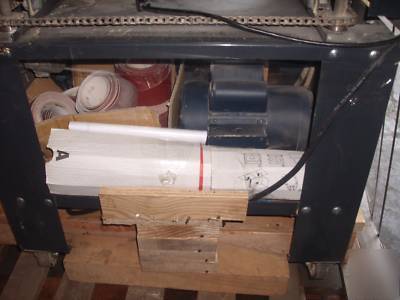

****5 HP 1 Phase 220 volt main motor and variable speed gear motor for feeding****
This is a sweet WOODMASTER combo machine!

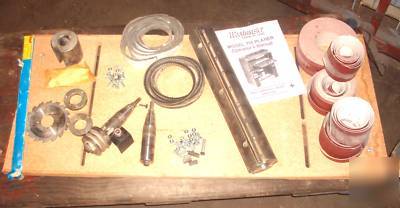

Setting gauge sanding head (installed in machine)
Extra sandpaper Operator's manual
Accessory shaft (which is used for both molding and drum sanding), and custom knife holder for knives up to 3 1/4" wide (wide knives must run on planer head).
Also Includes 2 gang rip blade mounting arbor flanges and 1 gang rip blade.
Has 2 Morse taper mounting shafts (1 with pulley).

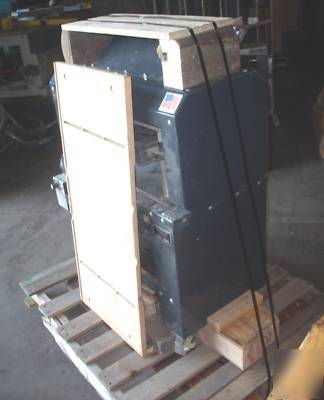

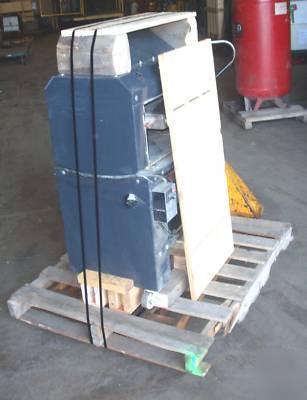

*****See photos of machine on skid. All it needs is the shrink wrap!*****
Model 718 (BIG 18) Specifications
Max. depth of cut per pass....3/16"
Max. width of cut.......18 1/2"
Min. finished thickness....5/16"
Max. rough thickness.... 6 3/4"
Shortest planable stock (not butted).....7"
Feed rollers: 1 1/2" diameter, non marring, molded rubbe. Limited slip V-belt drive.
Feed Rate: Infinitely variable from 0 to 16 ft per minute
Knives: 18 1/2" x 11/16" x 1/8". Special, High Chrome Alloy
Cutterhead: 3 knife solid machined steel, 3 1/4" diameter
Cross-bolt safety gib system with 3 jack screws per knife.
Cutterhead Shaft Diameter 1 1/2"
Cutterhead bearings: One piece cast iron housing with permanently lubricated, sealed-for-life inserts. Positive self-alignment. 1 1/2" I.D.
Planing Bed: One piece, precision-milled cast iron. 18 1/2" x 18 1/2" working surface. 18 1/2: x 42 9/16" with extension tables.
Power Requirement....Regular Duty- 5HP
Overall Dimension....30"W x 18 1/2"D x 37"H
