Tripp-lite lc-1200 w power transformer line conditioner

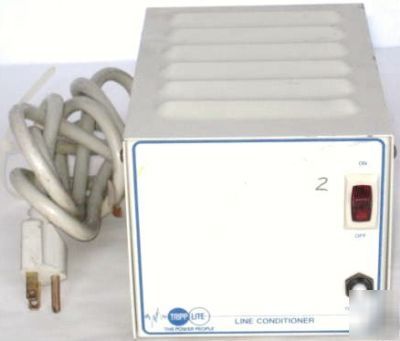

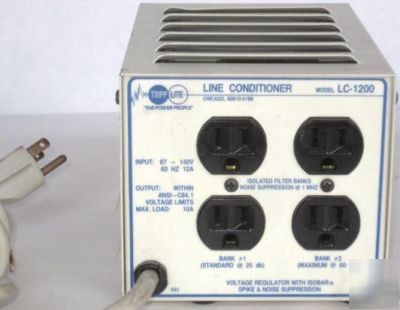

This listing is for a line transformer / power conditioner.
* Make: Tripp-Lite (TrippLite)
* Model / Part #: LC-1200 (LC1200)
* List Price: Approximately $172
* Description: Power Conditioner; 4 Outlet; 1200W (1200 Watt)
* Line Conditioner / AVR System - Automatic voltage regulator / Power conditioner / AC surge suppressor
* Premium automatic voltage regulation (AVR), power conditioning and AC surge suppression
* Maintains regulated 120V nominal output over an input range of 89 to 147V
* 1200 watt / 10 amp capacity
* 4 NEMA 5-15R outlets, 7 foot AC cord
* LEDs display incoming voltage range, surge suppression and line fault status
* Output nominal voltage 120V / 60Hz
* Outlet quantity / type 4 NEMA 5-15R
* Input cord length (ft.) 7.00
* Input cord length (m) 1.83
* Front panel LEDs 7 LEDs show incoming voltage status, protection present and line fault conditions
* SURGE / NOISE SUPPRESSION
* AC surge suppression 1200 joules, conforms to IEEE 587 / ANSI C62.41 specifications
* EMI / RFI AC noise suppression 75 dB
* Unit Dimensions (HWD/in) 7.25 x 6 x 7
* Unit Dimensions (HWD/cm) 18.4 x 15.2 x 17.8
* Material of construction Plastic
* Form factors supported Small Tower
* Certifications: Tested to UL1012 (USA), cUL1012 (Canada), NOM (Mexico)
* Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies.
* Maintains usable 120V (+10%/-12%) nominal output over an input range of 89 to 147V
* Protects sensitive electronics, computer accessories and home theater equipment from power-related damage and performance problems
* Extends the useful life of connected equipment by providing optimum voltage conditions for enhanced efficiency and cooler internal operating temperatures
* Three levels of voltage stabilization offer targeted response to overvoltages, undervoltages and severe brownouts
* Input voltages over 128V are reduced by 9.6% (+/- 3V)
* Input voltages between 103 and 112V are boosted by 8.9% (+/- 3V)
* Input voltages below 102V are boosted by 18.8% (+/- 3V)
* 1200 watts output power rating supports 120V loads up to 10 amps
* Network grade AC surge suppression
* 7 diagnostic LEDs indicate input voltage levels, surge suppression status and line fault conditions
* 4 protected NEMA5-15R outlets
* 7 foot AC power cord with NEMA5-15P input plug
* Maintains regulated output voltage during severe brownouts and overvoltages for computer accessories, printers, home theater equipment, a/v components, point-of-sale equipment, and other applications requiring clean, regulated AC power.
Tripp Lite's product page is located at http:// /en/products/model.cfm?txtModelID=208
