Vestil electric hydraulic docklevelers - eh-66

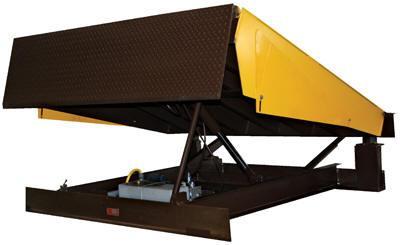

VESTIL Electric Hydraulic Docklevelers - EH-66
Electric Hydraulic Dockleveler
All Capacities listed are 20,000 lbs.
For Capacities up to 80,000 lbs. - Call factory
Electric Hydraulic Dockleveler is ideal for high usage dock areas. Easy to operate unit. Operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the "raise" button and deck descends to rest on the trailer. Control box includes red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level support cross traffic position. Available in 115/208/230V, 1 phase, or 208/230/460V, 3 phase power options. Includes (2) laminated bumpers and a service range of +/- 12". Capacities available up to 80,000 lbs.
Quoting a dockleveler installation for an existing pit can be difficult. We recommend that you complete this survey sheet (pdf) and fax it to us to guarantee a proper fit. Measure pit height at front and back of pit.
MORE Electric Hydraulic Docklevelers
For Capacities up to 80,000 lbs. - Please Call Us
Mechanical Electric Hydraulic Dockleveler Options
Dual Vinyl Weather Stripping Pre-Installed
Emergency Stop (RR-Models Only)
Curb Angle Set (For any size dockleveler)
Shallow Pit Option (17-1/2" Min. Depth)
Manual Cross Traffic Return System (EH-Models Only)
18" Long Lip for 6' Wide Dockleveler
18" Long Lip for 7' Wide Dockleveler
30,000 lb capacity for 6' Length
30,000 lb capacity for 8' Length
30,000 lb capacity for 10' Length
Leg Option for in Front of Dock Placement (6' Length)
Leg Option for in Front of Dock Placement (8' Length)
Leg Option for in Front of Dock Placement (10' Length)
Steel Shell For 6'x5' Pour In Place Installation
Steel Shell For 6'x6' Pour In Place Installation
Steel Shell For 6'x8' Pour In Place Installation
Steel Shell For 6'x10' Pour In Place Installation
Steel Shell For 7'x6' Pour In Place Installation
Steel Shell For 7'x8' Pour In Place Installation
Cold Weather Oil - Good To - 10 F (Electric Dockleveler)
Electric Interlock (EH Dockleveler & Trailer Restraint)
* Trailer Restraint Sold Separately
Click the for the PDF of the Approval Drawing for that model. Click the for the PDF of the Parts List for that model.
