Parker reusable hydraulic hose fitting female swivel 10
Maximum Pressure: Determined by hose choice
Temperature Range: Determined by hose choice
Use with hydraulic oil, air, and water Vacuume: not rated Clamps: not required
Hose: Parker 422 SAE 100R1 or Parker 302 SAE 100R2
If your hose becomes damaged, all is not lost - just unscrew the fitting and install it on a new hose. Unlike other hydraulic hose fittings, these thread directly onto the end of a hose and do not require an adapter. Fittings are made of steel bar stock with a zinc-plated finish. NPTF (Dryseal) threads are compatible with NPT threads.
For installation you'll need a vise and a wrench. First secure the hose end portion of the fitting in the vise. Next dip the end of your hose in oil, screw it all the way into the fitting counterclockwise, then back the hose out a half turn. Finally, put oil on the other end of the fitting and screw into hose end; use a wrench on the hex nipple to tighten.
Hose End x JIC 37 Female Swivel- Swivels for easier installation

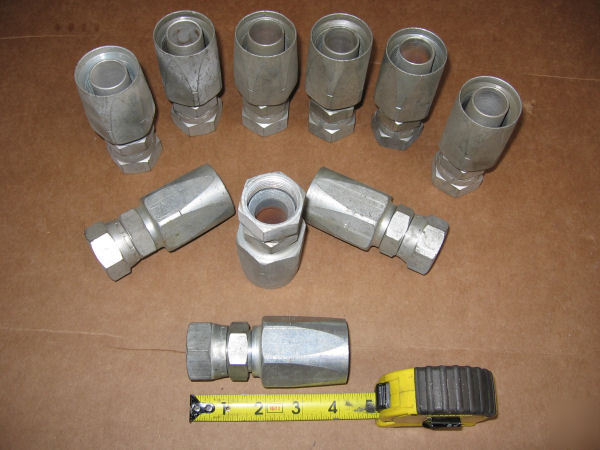

This lot is for 10 pieces. These retail new on sites like Mc Master Carr for 37.00 each! (# 52305K79)
