New veris PXPLX02S diff. pressure transducer 0-10" inbox

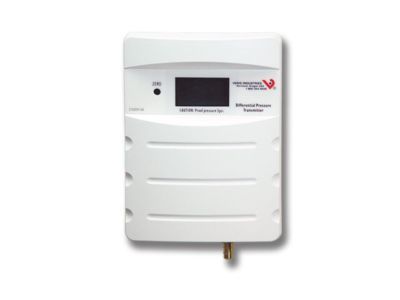

VERIS PXPLX02S Differential Pressure Transducer 0-10"
Media Compatibility Dry air or inert gas
Input Power 12-30VDC, or 24VAC nominal
Output Field-selectable: 2-wire, loop-powered 4-20mA (DC only, clipped and capped), or 3-wire 0-5V/0-10V
PX: 02 Unidirectional: 1.0/2.5/5.0/10 W.C. F.S., switch selectable
Unidirectional: 0.250 kpa/0.500 kpa/1.000 kpa/2.500 kpa, F.S., switch selectable
Response Time Standard: T95 in 20 sec, Fast: T95 in 2 sec, switch selectable
Display (option) Signed 3-1/2 digit LCD, indicates pressure, overrange indicator
Proof Pressure 3 psid (20.6kPa)
Burst Pressure 5 psid (34.5kPa)
Accuracy 1% F.S. of selected range (combined linearity and hysteresis)
Temperature Effect 1" (250Pa) models: 0.05%/ C; 10" (2.5kPa) models: 0.01%/ C
(Relative to 25 C) 0 to 50 C (32 to 122 F)
Zero Drift (1-year) 1" (250Pa) models: 2.0% max.; 10" (2.5kPa) models: 0.5% max.
Zero Adjust Pushbutton auto-zero and digital input (2-pos terminal block)
Operating Environment 0 - 60 C (32 to 140 F); 0 to 90% RH non-condensing
Fittings Brass barb; 0.24 (6.1mm) o.d.
Physical UL 94 V-O Fire Retardant ABS
VERIS PXPLX02S Differential Pressure Transducer 0-10"in w.c.
