Cnc lathe "turning center" okuma l 8 - '99 - 8900 hours
You are invited to purchase or "MAKE YOUR BEST OFFER" on a CNC Lathe "Turning Center" being a 1999 OKUMA ES-L8 WITH ONLY 8900 HOURS OF CUTTING TIME and has the following specifications:
SWING OVER BED..........................17.72"
SWING OVER CARRIAGE.....................13.78"
SWING OVER CROSS-SLIDE..................11.81"
MAX. TURNING DIAMETER X LENGTH..........10.63" X 19.6"
CROSS-SLIDE X-AXIS TRAVEL...............6.10"
CROSS-SLIDE X-AXIS FEED RATE............0.00004 TO 39.37 IPM
RAPID FEED RATE.........................590.55 IPM
CARRIAGE Z-AXIS TRAVEL..................20.47"
FEED RATE...............................0.00004 TO 39.37 IPM
RAPID FEED RATE.........................787.40 IPM
SPINDLE DRIVE MOTOR.....................10/7.5 HP (30 MIN/CONT.)
SPINDLE DIAMETER........................3.94"
SPINDLE NOSE TYPE...................... A2-6
THROUGH-SPINDLE HOLE....................2.44"
SPINDLE SPEED RANGE.....................70 - 3000 RPM
TURRET TYPE.............................V
NO. OF TOOLS............................8
TOOL SIZE, O.D. TURNING TOOLS...........0.98"
I.D. TURNING TOOLS.....................1.57"
TAILSOCK SPINDLE DIAMETER...............3.54"
TAILSTOCK SPINDLE TAPER HOLE............MT No. 5 (REVOLVING CENTER)
TAILSTOCK SPINDLE TRAVEL................3.94"
MACHINE HEIGHT..........................66.93"
FLOOR SPACE REQUIRED....................83.07" X 66.93"
APPROX. WEIGHT..........................8,200 LBS.
6" 3-Jaw Chuck (Spindle will accept 8" chuck)

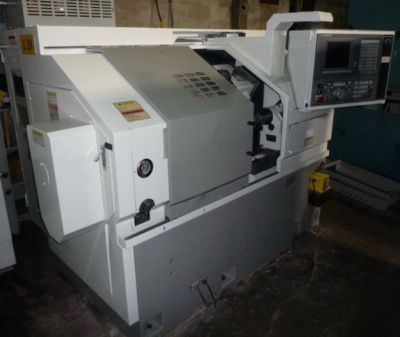

Condition: Good to Excellent (see listing photos)
This CNC LATHE "TURNING CENTER" BEING A OKUMA ES L8 is known to be in a "Excellent Condition" (see listing photos) and can be inspected by calling (***) 882 2765 for appointment.
WE INVITE YOU TO SEND US INFORMATION CONCERNING ANY USED EQUIPMENT YOU WISH TO LIQUIDATE AS WE WILL TRY TO SECURE A FAIR MARKET VALUE FOR THE ITEMS AND EXPECT VERY LOW COMMISSIONS FOR OUR SERVICES. CONTACT US AT "****@maysvilleky.net" (cj)
