66" skid steer/tractor heavy duty grapple/root rake

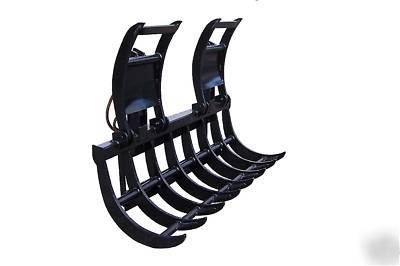

66" SKID STEER/ TRACTOR HEAVY DUTY GRAPPLE/ROOT RAKE
Rake will fit ASV, Bobcat, Caterpillar, John Deere, New Holland and other machines with the universal quick detach plate.
Rake will also fit Branson, Kubota, Massey Ferguson, Mahindra, New Holland and other farm utility tractor loaders with the universal quick detach plate.
Available also for John Deere farm utility tractors with the 500 series loaders and the quick release hook up.

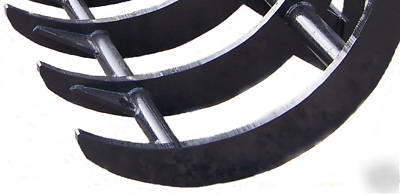

Rake has (8) each bottom teeth cut from one piece of 3/4" carbon steel plate. We run two sections of heavy wall tubing THROUGH each tooth and then weld them 360 degrees on both sides of the tooth. Then we reinforce that with 1/2" thick gussets and weld them solid top and bottom.

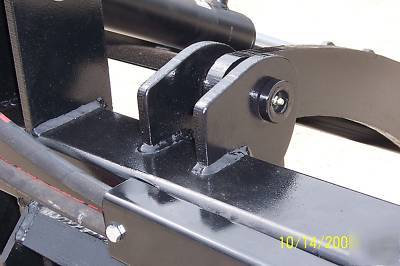

Rake has two each independent top grapples with 3/4" thick teeth. Each grapple has a 2500 lb WELDED hydraulic cylinder with bottom cylinder protection plates. Grapples have pins and bushings with recessed grease fittings for longer service life.
Rake comes with hydraulic hoses and swivel cylinder fittings. HOSES FROM THE RAKE TO YOUR LOADER ARE NOT INCLUDED. We can also supply the hoses from the rake to your machine, depending on which machine or tractor that you have and which fittings or couplers you need. We will be glad to quote you for any additional hoses and fittings that you need.
Rake has a opening of 46"+/- from tip of the bottom teeth to the tip of the top grapple teeth.
WE ARE THE MANUFACTURER OF THESE RAKES NOT A RESELLER.
