Osram electric ballast for halide lamp pti 150/220-240S

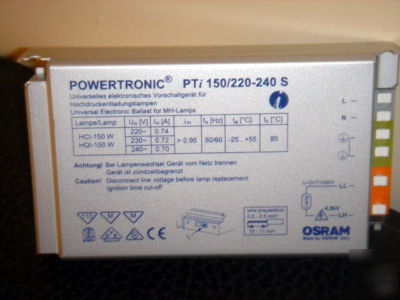

OSRAM Electric Ballast for Halide Lamp PTi 150/220-240s
POWERTRONIC and HCI and HQI metal halide lamps POWERTRONIC has a wide variety of uses. Its low weight and small volume increase the scope for luminaire design and system planning. POWERTRONIC makes the cost-effective light from metal halide lamps
Cable cross-section, output side: 0.5...2.5 mm
Restriction on ignition time: 18 min
Cable cross-section, input side: 0.5...2.5 mm
Overtemperature protection: automatic switch off, reversible by mains reset
Design / version: Built-in unit
Max. no. of ECGs on circuit breaker 10A: 4
TH full width at half maximum: 250 s
Max. no. of ECGs on circuit breaker 16A: 7
Maximum cable capacity ECG/lamp: 120 pF
Operating frequency: 0.165 kHz
Wire preparation length, input side 10...11 mm
Max. cable length - system in meters 1.5 m
Mounting hole spacing, length 139 mm
Wire preparation length, output side: 10...11 mm
Max. casing temp. in case of fault: 110 C
Storage temperature: -40...85 C
Relative humidity: 5...85 % 1)
Ambient temperature range: -25...+55 C
Max. operating temp. at the Tc point: 85 C
Our Ref. G500/HD421/PM155/OP13
