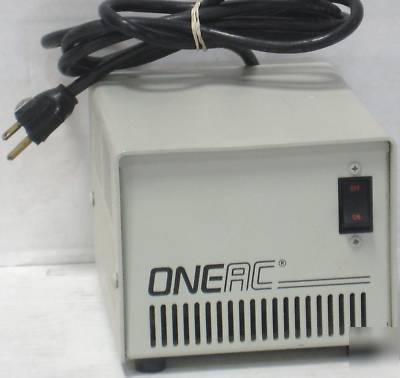

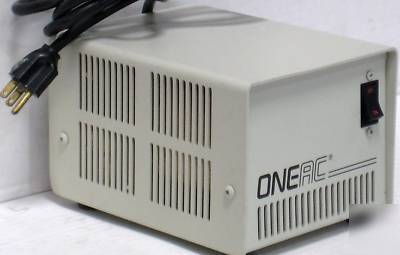

Oneac CP1105 550VA power line conditioner transformer
This listing is for a line conditioner.
* Description: Line Conditioner / Transformer
ONEAC offers a number of different Power Conditioner solutions. The ONEAC power conditioning design includes a low-impedance transformer that limits not only peak voltage (amplitude), but also edge-speed (frequency) of electrical transients. ONEAC also features the patented Virtual Kelvin Ground - a unique grounding methodology that creates a noise-free power environment.
ONEAC s unique power conditioning architecture provides unmatched protection against the full range of power line disturbances. Components include:
Full output isolation: ONE AC s proprietary low impedance transformer design. Completely safeguards against lightning and other high energy surges without creating detrimental side effects.
Virtual Kelvin Ground: Eliminates the full spectrum of conducted power line noise (from 50 kHz to 10 MHz) in all modes, reduces the effects of electrostatic discharge (ESD), and provides an exceptionally clean signal reference ground for electronic systems.
* MODELS: PC Series/CP Series Download Spec Sheets
* TYPE: Single Phase, 60 Hertz
* RATINGS: 385VA-1kVA, 3.2-8.4A
* REPLACEMENT MODEL #: PC550A
* Load Current Rating (Amps): 4.6

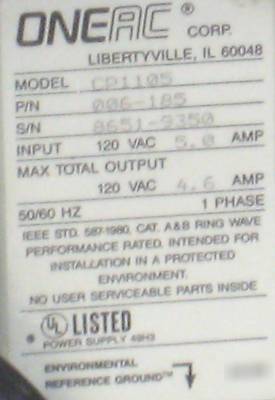

* Input Voltage (VAC): 120
* Output Voltage (VAC): 120
* Load Regulation (RMS): 3%
* Inrush - Cycle (Amps): 100
* Surge Current (Amps) 1 sec. typical: 32
* Surge Current (Amps) 5 sec. typical: 11.5
* 1kHz Forward Transfer Impedance (Ohms): <6.4
* Agency Approvals UL1012 & CSA C22.2 No. 66

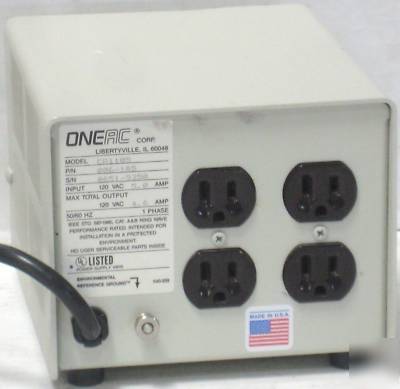

* Number of 5-15 Outlets: 4
* Hospital Grade Versions: Yes
* OneGround Versions: Yes
* Width w/ Wall Mount (Inches): 7.7
