New 1- square d FHL26090 90A 2P FAL26090 breaker 600V

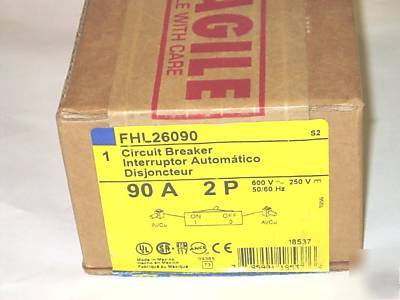

1- SQUARE D FHL26090 90 AMP 2 POLE CIRCUIT BREAKER NEW IN BOX
CAN BE USED IN PLACE OF FAL26090, JUST HAS A HIGHER INTERRUPTING RATING.
MOLDED CASE SWITCH, THERMAL MAGNETIC; F FRAME; NEW IN BOX, NEVER OPENED
600 VAC AT 50/60 HZ, 250 VDC; 90 AMPERE AT 40 DEG C; 2 POLE;
INTERRUPTING RATING 65 KILOAMPERE AT 240 VAC, 25 KILOAMPERE AT 480/480 STAR/277 VAC,
18 KILOAMPERE AT 600/600 STAR/347 VAC, 10 KILOAMPERE AT 250 VDC,
20 KILOAMPERE AT 500 VDC (UL, CSA); 10 KILOAMPERE AT 415/240 VAC (IEC);
SIZE 3 INCH W X 4.13 INCH D X 6 INCH H; APPROVAL UL, CSA;
FHL MODEL; APPLICABLE STANDARD IEC; AC MAGNETIC TRIP SETTING 900 AMPERE HOLD, 1700 AMPERE TRIP;
ICS RATING 2.5 KILOAMPERE AT 415/240 VAC. SQD FHL26090 2P 90A 600V CKT BRKR 638.42
