Millivolt power meter rohde & schwarz URV5 iec-bus

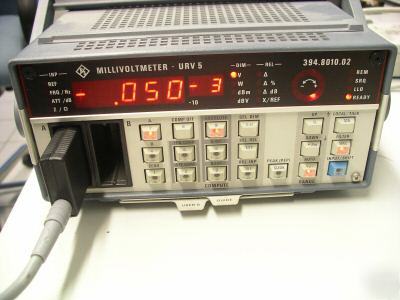

You are getting a used precise Millovoltmeter URV-5 from Rohde & Schwarz type 394.8010.02. The precise test set was used very seldom and looks like new. It is in good working condition as you can see on the picture.
Millivoltmeter URV5 is a broadband voltage, level and power meter of high accuracy and sensitivity. It is suitable both for manual operation and for use in systems. A wide choice of individually calibrated probes and sensors allows URV5 to be used for a great variety of measurements:
* With RF probe and DC probe for no-load AC and DC voltage measurements
* Voltage (and power) measurements in coaxial 50 W and 75 W systems using low-reflection and low-loss insertion units
* Power measurements up to 26.5 GHz using Power Sensors NRV-Z1 to -Z6
* High accuracy through mP-control-led error correction: 1%
* Readout in all standard units with selectable reference impedance; relative measurements
Measurement INP REF, FRQ/Hz, ATT/dB, Z/Ohm,
REL Delta, Delta %, Delta dB, X/REF
Control Pushbuttons manual & IEC-BUS remote
Power requirements: 110 / 120 Volts 47 to 63 Hz
Dimensions: 14.2 x 8.3 x 4.7 in or 36 x 21 x 12 cm
The URV-5 comes with no cables or manuals or probes. A User s Guide, two plastic sheets are directly attached at the bottom of the test set.
Please feel free to contact us if you need additional information or look at http://www2.rohde-schwarz.com/product/urv5.html
