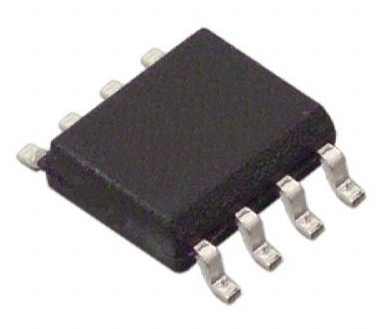

> Ics chips:TC4422AVOA 9A high-speed single mosfet driver
Ics chips:TC4422AVOA 9A high-speed single mosfet driver
High Peak Output Current: 10A (typ.)
Low Shoot-Through/Cross-Conduction Current in
Wide Input Supply Voltage Operating Range:
High Continuous Output Current: 2A (max.)
Matched Fast Rise and Fall Times:
Matched Short Propagation Delays: 42 ns (typ.)
- With Logic 1 Input 130 A (typ.)
- With Logic 0 Input 33 A (typ.)
Low Output Impedance: 1.2O (typ.)
Latch-Up Protected: Will Withstand 1.5A Output
Input Will Withstand Negative Inputs Up To 5V
Pin-Compatible with the TC4420/TC4429
and TC4421/TC4422 MOSFET Drivers
Line Drivers for Extra Heavily-Loaded Lines
Driving the Largest MOSFETs and IGBTs
