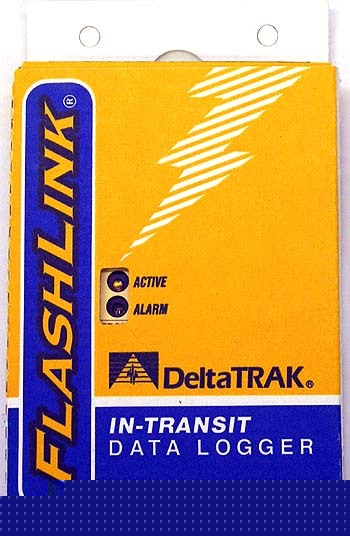

New deltatrak flashlink 20041 in-transit data logger pc
NEW DELTATRAK FLASHLINK 20041 IN-TRANSIT DATA LOGGER PC
NEW Condition in Original Box
DeltaTrak Flashlink In-Transit Data Logger, with External Probe for Recording Storage and Condition of Temperature Sensitive Products
-80 C with Blunt Sensor / Probe
Download its data to a pc in about five seconds with 25-
pin PC cable or optional serial port adapter
The patented Shadow Log feature guarantees recording
even if the operator fails to activate the unit
Temperature Measuring Range -112 F to 150 F (-80 C to 66 C)
Environmental Operating Range probeless model -112 F to 150 F (-80 C to 66 C)
Ext probe model -76 F to 150 F (-60 C to 66 C)
Temperature Accuracy 1.0 F (0.5 C) From 32 F to 150 F (0 C to 66 C)
Temperature Resolution 0.1 F/C
Temperature Scale Select F/C selectable through software
Logged Data Capacity 3,822 data points
Logging Interval (5 - Day = 1 Min. 54 Sec.) (15 - Day = 5 Min. 40 Sec.)
Data Download Time 5 second typical for 3,822 data points
LED Indicators 12-second flashing red for alarm; green for active
Battery Type/ Life 3.6v Low temp lithium x 2 (no user serviceable)
Dimensions/ Enclosure 3.7 in.W x 5.25 in. H x .9 in. D; ABS plastic case with
Weight 3.2oz. (90gm) with batteries
Shock Resistance Withstands 3-foot drop to hard surface
Certification CE Mark by T.U.V.; Calibration Traceable to N.I.S.T.
Min. System Requirements IBM compatible 486 with 4MB RAM, WIN3.1, 95,
Software Requirements In-Transit FlashLink Software
