> Ds pic 30F4011 e/p 16-bit digital signal controller
Ds pic 30F4011 e/p 16-bit digital signal controller
High Performance Modified RISC CPU:
48 Kbytes on-chip Flash program space (16K Instruction words)
2 Kbytes of on-chip data RAM
1 Kbytes of non-volatile data EEPROM
- 4 MHz-10 MHz oscillator input with PLL active (4x, 8x, 16x)
- 8 user selectable priority levels for each interrupt source
17-bit x 17-bit single cycle hardware fractional/ integer multiplier
High current sink/source I/O pins: 25 mA/25 mA
- Five 16-bit timers/counters; optionally pair 16-bit timers into 32-bit timer modules
3-wire SPI modules (supports 4 Frame modes)
I2C module supports Multi-Master/Slave mode and 7-bit/10-bit addressing
1 CAN modules, 2.0B compliant
- Edge and Center Aligned modes
10-bit Analog-to-Digital Converter (A/D) with
Programmable Brown-out Detection and Reset generation
Enhanced Flash program memory:
- 10,000 erase/write cycle (min.) for industrial temperature range, 100K (typical)
- 100,000 erase/write cycle (min.) for industrial temperature range, 1M (typical)
Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
Flexible Watchdog Timer (WDT) with on-chip low power RC oscillator for reliable operation
Fail-Safe clock monitor operation detects clock failure and switches to on-chip low power RC oscillator
Selectable Power Management modes
- Sleep, Idle and Alternate Clock modes
Low power, high speed Flash technology
Wide operating voltage range (2.5V to 5.5V)
Industrial and Extended temperature ranges

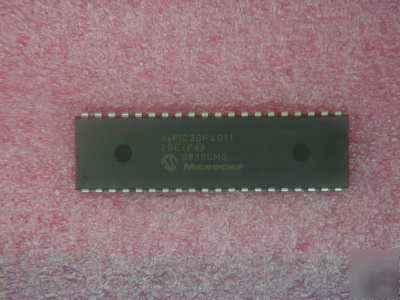

The device is a 40-pin Dual-In-Line package.
