Arduino mux shield: analog digital i/o multiplexer

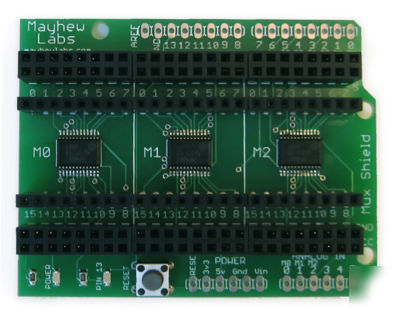

The Mux (Multiplexer) Shield adds the capacity for up to 48 inputs or outputs on the Arduino and Arduino Mega.
If you need a lot of inputs and/or outputs, this is your solution! Using three Texas Instruments CD74HC4067 Analog Multiplexers, the Mux Shield makes it possible to have 48 analog/digital inputs or digital outputs in many combinations.
* 48 analog inputs/digital inputs/digital outputs (in combination)
* Vcc and Ground header strips (each input/output pin has a dedicated Vcc and Ground)

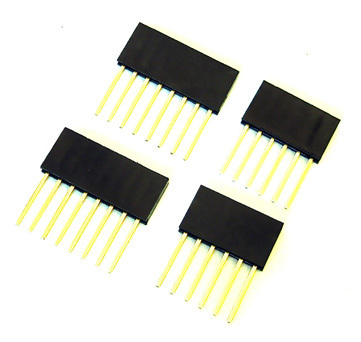

* Stackable headers (plug directly into Arduino and add more shields on top)
* Requires digital pins 2,3,4,5 and analog pins 0,1,2 48 inputs/outputs for the price of 7 pins!
* Digital input example code
* Digital output example code
