Anritsu MS9715A/37 wdm optical tester

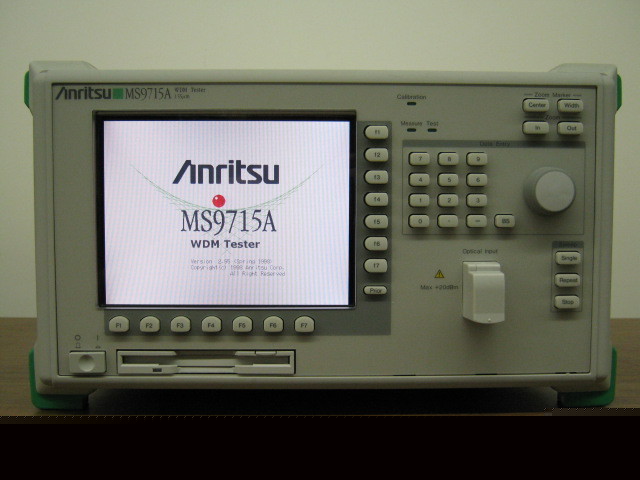

Anritsu MS9715A/37 WDM Optical Tester
The MS9715A is a measuring instrument for use in system manufacture, construction, and maintenance. One instrument combines accurate measurement of necessary items over long periods and satisfies conditions of simplicity of use in construction and maintenance operations, lightness and compactness, and superior environmental performance with respect to vibration and shock. In addition, since the LabVIEW driver is fitted as standard, programming by remote control is simple. A windows compatible floppy disk drive is also fitted as standard.
The MS9715A provides the high performance required for the performance testing and evaluation of WDM equipment. Wavelength measurement has +/- 50 pm accuracy, +/- 5 pm wavelength stability, and +/- 20 pm wavelength linearity. High performance level measurement has a dynamic range of 53 dB (0.5 nm from peak), +/- 0.4 dB level accuracy, +/- 0.02 dB level stability, and +/- 0.05 dB level linearity.
