Agilent 4396B/1D5/1D6 1800MHZ network/specrum/impedance

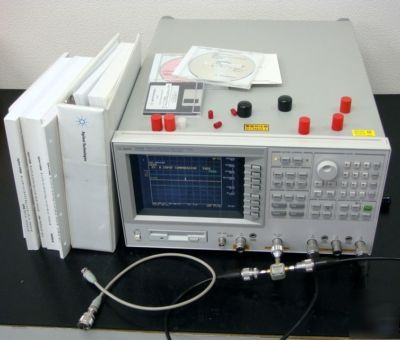

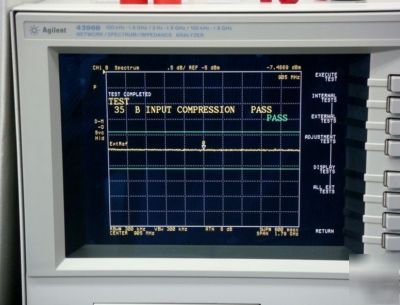

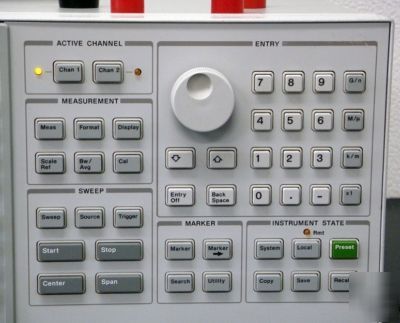

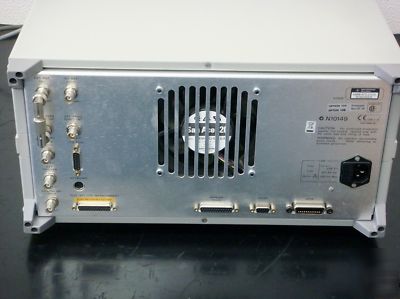

Agilent 4396B/1D5/1D6/810/ABJ 100K-1800MHz Network/Spectrum/Impedance Analyzer
Frequency characteristics Range:100 kHz to 1.8 GHz Resolution: 1 mHz
Accuracy:23 5 C,referenced to23 C < 5.5 ppm/year Aging:.< 2.5 ppm/year typically
Initial achievable accuracy:< 1.0 ppm typically
Output Characteristics Power range: 60 dBm to +20dBm Power sweep range:.20dB
Resolution:.0.1 dB Output power: 20 dBm power +20 dBm 0.7 dB
40 dBm power < 20 dBm 1.0 dB
60 dBm power < 40 dBm 1.5 dB
Receiver Characteristics Frequency range: IFBW 3 kHz,100 kHz to 1.8 GHz
IFBW = 10 kHz, 40 kHz ,1 MHz to 1.8 GHz Full scale input level: R input +20 dBm
A, B inputs 5 dBm IF bandwidth:10, 30, 100, 300, 1 k, 3 k, 10 k, 40 kHz
Noise level: 100k freq< 10 MHz R < 85 dBm < 50 dBm
100 k freq < 10 MHz A, B < 110 dBm < 75 dBm
10 MHz freq R < [ 100+3f]dBm1 < [ 65+3f] dBm1
10 MHz freq A, B <[ 125+3f] dBm1 < [ 90+3f] dBm1
Maximum safe input level:+20 dBm or 25 Vdc typically Impedance:50
Return loss: frequency 500 kHz ,> 20 dB 100 kHz frequency < 500 kHz ,> 12 dB typically
3 MHz frequency 50 MHz ,> 35 dB typically Multiplexer switching impedance change ,< 1 typically
1D5:High Stability Frequency Reference
1D6:Time-Gated Spectrum Analysis
ABJ:Japan-Japanese Localization
Accessory : Full ( Calibration Certification ,Manual*5 ,CD-ROM*2 ,3.5FDD )
Warranty:Acceptance : Calibrated Oct2009 one month 5days return right
