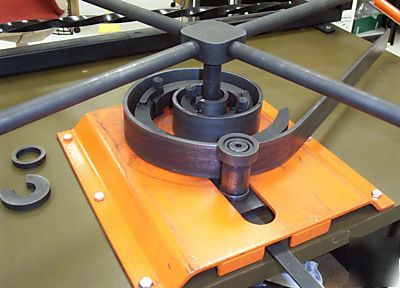

Scroll bender MK3/4 metal hand operated benders tool
LOOK AT THE SIZES THIS SCROLL BENDER WILL DO!
Combining ease of operation with the versatility the MK3/4 Scroll Bender offers, makes this a popular scroll bender.
The versatility of the MK 3/4 Scroll Bender stems from its ability to produce a range of different scroll shapes and sizes. This is achieved by using different combinations of the 4 scroll segments that come with the MK3/4. This is a popular feature.
MK3/4 SCROLL BENDER SPECIFICATIONS:
2" wide x 1/4" thickness OR 1" wide x 3/8" thickness
1/2" (unheated) or 5/8" (with end heated)
10" (approximate due to the varying temper (spring) of steel)
For 2"wide x 1/4" thickness flat strip metal (using #1 scroll segment only) is approx.
For 1"wide x 3/8" thickness flat strip metal (using #1 scroll segment only) is approx.
For 1/2" or 5/8" solid square bar or solid round rod (#1 and #2 scroll segments must be used together for these sizes) is approx. 4 3/4"
14 1/4" (width) x 14 1/4" (depth) x 7" (height)
34" each handle length with extensions on.
Interchangeable segments to enable you to make various scroll profiles.
Rapid locking system for holding and releasing bar
Easy scroll release allows for rapid removal of formed scrolls.
Handle extensions for added leverage when working larger material.
Allows forged fish tail ends to be scrolled.
EASY TO USE - NO PRE-HEATING OF METAL REQUIRED WHEN SCROLLING (except with largest size 5/8" solid round rod or solid square bar).
All tools are supplied with operating instructions.
Please note that the maximum working capacity stated is for Hot Rolled Material or Annealed metal. Working beyond these limits or with material of greater hardness may reduce the operational life of the tool.
