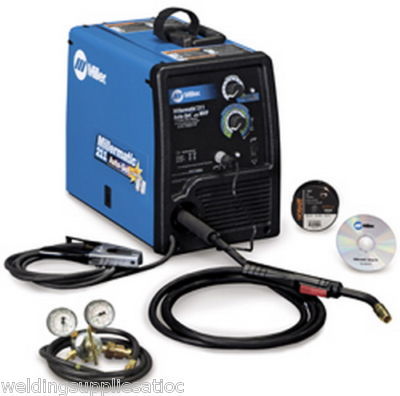

Miller millermatic 211 w/autoset mig welder pkg 907422
MILLER MILLERMATIC 211 W/AUTOSET MIG WELDER PA
MILLER MILLERMATIC 211 WITH AUTO SET MIG WELDING PACKAGE-BRAND NEW 907422
* 6 ft (1.8 m) power cord and MVP plugs
* 10 ft (3 m) M-10 MIG gun and cable assembly
* 10 ft (3 m) work cable and clamp
* Smith Argon and AR/CO2 mix regulator/flow gauge with hose
* Spool of Hobart .030 in (0.8 mm) solid wire
* Two contact tips for .030 in (0.8 mm) wire and two contact tips for .035 in (0.9 mm) wire
* Dual groove quick-change drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) wire
* Factory-installed gas solenoid valve
* Information/settings chart
* Material thickness gauge (#229 895)
YOU CAN CALL US AT (***)-854-7380 FROM 5:00AM-7:00PM PACIFIC TIME 7 DAYS A WEEK
Millermatic 211 Auto-Set with MVP
Welds material from 24 gauge to 3/8 in thick in a single pass
* 230 V, 25 A, 60 Hz, 1-Phase
* 120 V, 20 A, 60 Hz, 1-Phase
* 150 A at 23.5 VDC, 30% duty cycle (230V)
* 90 A at 20 VDC, 20% duty cycle (120V)
* 60 - 460 IPM (1.5 - 11.7 m/min)
Auto-Set Go! SmartSelector - Product Selection Made Easy
Auto-Set: The right settings automatically -
* Set the wire diameter, a blue light shows that Auto-Set is activated
* Dial in the thickness of what you're welding
* Start welding with the exact parameters you need!
Infinite voltage control gives you the flexibility to manually set the machine when welding aluminum, stainless steel, or anytime you want to set your own parameters on mild steel.
Welds thickest material in its class! The Millermatic 211 Auto-Set with MVP has the highest output in its class. It can weld from 24 ga-3/8 in (0.8-9.5 mm) mild steel in a single pass on 230 V.
Smooth-Start patented technology provides a smooth, spatter-free start. It's the best-starting machine in the small MIG machine category. No pop gun starts and virtually no spatter to clean up.
Durable cast aluminum drive system incorporates dual-groove quick-change drive roll and spring-loaded tension arm with calibrated tension knob, all designed to make set up easier and faster.
Miller's exclusive "Tip Saver" short circuit protection shuts down output when tip is shorted to the work. Extends contact tip life and protects internal components from damage. Trigger reset permits quick reset at gun rather than at the machine.
Cable management built into the handle.
Uses 4 or 8 in (102 or 203 mm) spools and can be set up to weld with wire sizes .024-.035 in (0.6-0.9 mm) mild/stainless steel and .030-.045 in (0.8-1.2 mm) flux cored.
