Ge zoneline 5000 heat pump main control board.

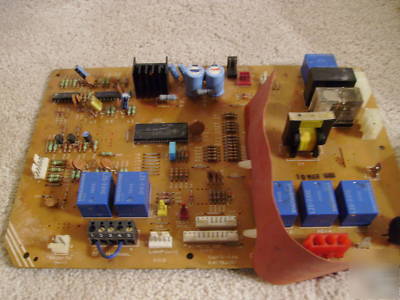

GE ZONELINE 500 HEAT PUMP MAIN CONTROL BOARD. This board will work with the main GE ZONELINE 500 HEAT PUMP CONTROL PANEL that I have listed. It is the main elrectronic board that control tghe functions of the unit. The board connects to the control panel by 2 connectors that have 10 and 5 wires recpectively. It has connections for 2 molex type plugs that are marked FMO (2 wires) and FM1 (3 wires). that are white and one molex type plug that is black and is markedTR-P (2 wires). It has 2 male push on spade type connectors that are marked P-2 and P-1. It also has pin type connections that are marked COMP (2 wires), SW (9 wires), ROOM TH (2 wires), SENSORS (6 wires) which are white and TR-S (2 wires) which is black. THe numbers on the main micro chip are MP 9485 MSL 749 01. I am a semi retired HVAC contractor who is selling off his remaining inventory.
