Appleton RL230ME-std reel & xp-99 light explosion proof

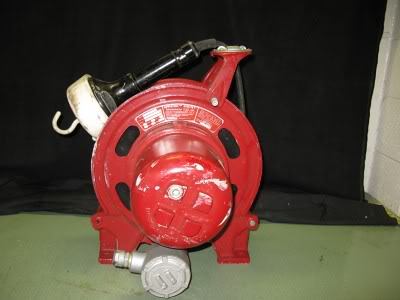

APPLETON RL230ME-STD REEL & XP-99 LIGHT EXPLOSION PROOF
Click here for a PDF file from appleton about the Reel
Click here for the XP-99 Spotlight
Click here for the Appleton Reel
KSCdirect Part Number: RL203ME
Manufacturer Part Number: RL203ME
Manufacturer: APPLETON ELECTRIC COMPANY
Material:CAST ALUMINUM FRAME, STEEL SIDE
Finish:RED EPOXY POWDER COATED
Voltage Rating:600 VAC/250 VDC
Cable Type:14/2 AWG SO, 14/3 AWG SO
Cable Length:35/40/45/50/55 FT
Enclosure:CLASS I DIV 1 AND 2 GROUP D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III
Application:LIFT, PICK UP, SUSPENSION DUTY
Classification: Explosionproof Cable Retracting Reel
REEL WITH CABLE; CAST ALUMINUM FRAME, STEEL SIDE; RED EPOXY POWDER COATED; 600 VAC/250 VDC; 25 AMPERE; 14/2 AWG SO, 14/3 AWG SO CABLE; 35/40/45/50/55 FT CABLE LENGTH; CLASS I DIV 1 AND 2 GROUP D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III; APPLICATION LI
S.R. Browne Model # XP99 12-Volt Light Only
UL Listed Class I, Div. I, Group D
Ideal for indoor and outdoor use, the XP99 light uses a 12-volt, high-intensity,100 watt, 100,000 candlepower sealed beam lamp. The aluminum light-weight guard is cast from high impact, non-sparking alloy with swivel hook. The model GSSA50 provides a safe spotlight for confined space operations.
Meets OSHA requirements 1926.40154
