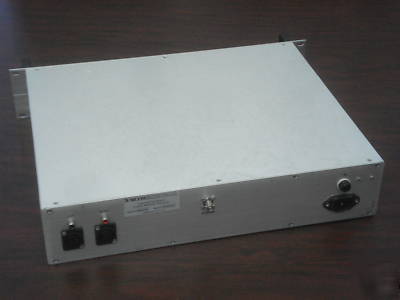

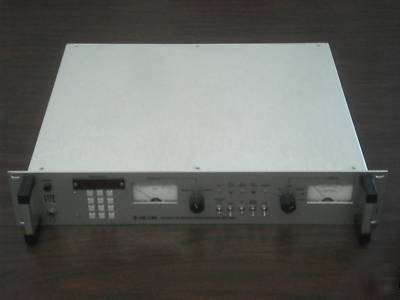

Nicom mm-2002 broadcast modulation monitor
The MM-2002, which is a highly accurate Fm modulation monitor, is in very good cosmetic condition and excellent working condtion. Power cord included.
FREQUENCY RANGE: 87.5- 108 MHz
SENSITIVITY: 10uV per S/N 50 dB
LOCAL MODE SENSITIVITY: -25 dB
S/N unweighted: > 70 dB with Vin 1mV
IF BANDWIDTH: 300 KHz within 1.5 dB
DERIVATION ACCURACY: + 0.8 dB
19 KHz LEVEL ACCURACY: + 0.8 dB
57 KHz LEVEL ACCURACY: +1.5 dB
LEFT AND RIGHT LEVEL ACCURACY: +1.5 dB
STEREO CROSSTALK: 40 dB within 200Hz AND 10 KHz
PLUG AUDIO LEVEL OUT: 0 dBm su 600 ohm
XLR AUDIO LEVEL OUT: 4V PeP su 600 ohm
