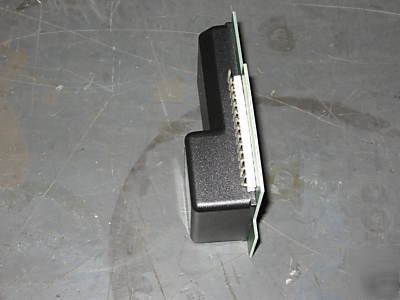

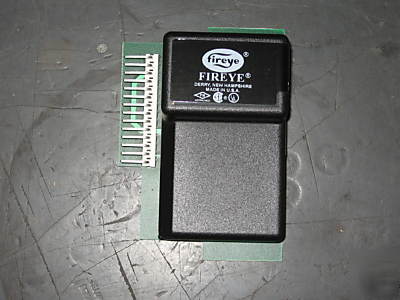

New fireye uv self-check amplifier part# MEUVS4
The Fireye UV Self-Check amplifier, 3 second FFRT, uses 45UV5-1009 scanner
The Fireye MEUV1, MEUV4, MEUVS1, MEUVS4, MERT1, MERT4, MEIR1, MEIR4, MECD1
and MECD4 are Amplifier Modules used with the Fireye Modular MicroM control. These amplifier
modules provide flame scanning capabilities using any of the Fireye standard ultraviolet scanners,
self-check scanners, infrared scanners, cadmium sulfide scanners and flame rods. The Flame Failure
Response Time (FFRT) of the control is determined by the selection of the amplifier module (see
Ordering Information). Test jacks are provided on the amplifier modules to permit flame signal measurement
during operation and is a uniform 0-10 vdc for all models.
After scanner selection, the proper amplifier module must be used in the Modular MicroM chassis
(see Ordering Information). The amplifier module incorporates a plug-in design for ease of installation.
The programmer module determines the operational characteristics of the control (e.g. relight, purge
For proper and safe application of this product, you must refer to bulletin MC-5000 for a detailed
description of the operation of the Modular MicroM control, including installation instructions,
operating sequences for the programmer modules, etc. Also follow the scanner installation and wiring
instructions found in bulletins MC-5000 for proper flame scanning operation.
