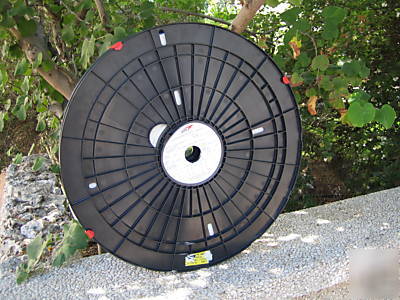

Gore high flex flat cable (spooled)
GORE High Flex Flat Cables are used in applications where flex life reliability is critical. The reliable performance of GORE High Flex Flat Cables reduces expensive equipment downtime and field repair due to cable failure. GORE High Flex Flat Spooled Cable is recommended for longer lengths (greater than 30 m) and is cost effective with high volume pricing when large quantities are needed. GORE High Flex Flat Cables provide reliability and superior performance with quick lead times.
GORE High Flex Flat Spooled Cable can be used in any energy chain or cable track. GORE Spooled Flat Cables are the narrowest cable option available and provide a smaller package solution that can reduce cable track size to allow for better utilization of space. Cable track may not even be necessary for short stroke lengths of 0.5 m (20 ) or less. For prototypes or low volumes, consider using GORE High Flex Flat Discrete Length Cable and then convert to GORE High Flex Flat Spooled Cable as volumes increase.
* Conductor material: Silver plated copper
* Insulation material: PTFE (Polytetrafluoroethylene - Teflon)
* Colors: White/Brown; Green/Yellow; Gray/Pink; Blue/Red; Black/Violet; Gray-Pink/Red-Blue; White-Green/Brown-Green; White-Yellow/Yellow-Brown; White-Gray/Gray-Brown; White-Pink/Pink-Brown; White-Blue/Brown-Blue; White-Red/Brown-Red; White-Black/Brown-Black
* Material: High strength copper alloy
* Material: Expanded PTFE (Polytetrafluoroethylene - Teflon)
* Material: Composite of Expanded PTFE (Polytetrafluoroethylene - Teflon)
* UL AWM Stile 21090 (80 C, voltage not specified)
* Operating voltage: 300V RMS
* Operating Temperature Range: 20 C to 80 C
* Proven flex life greater than 20 million cycles at 50 mm
* Clean, non-particulating jacket
* Requires less space than round cable
* Maximum Self-Supporting Stroke Length1
* Signal, Power, and Fiber Optic
2 UL Style 21090:80 C, pneumatic tubes are not UL recognized
Data Sheet: http:// /MungoBlobs/589/371/design_tools_spooled.pdf
